ES325EHAD

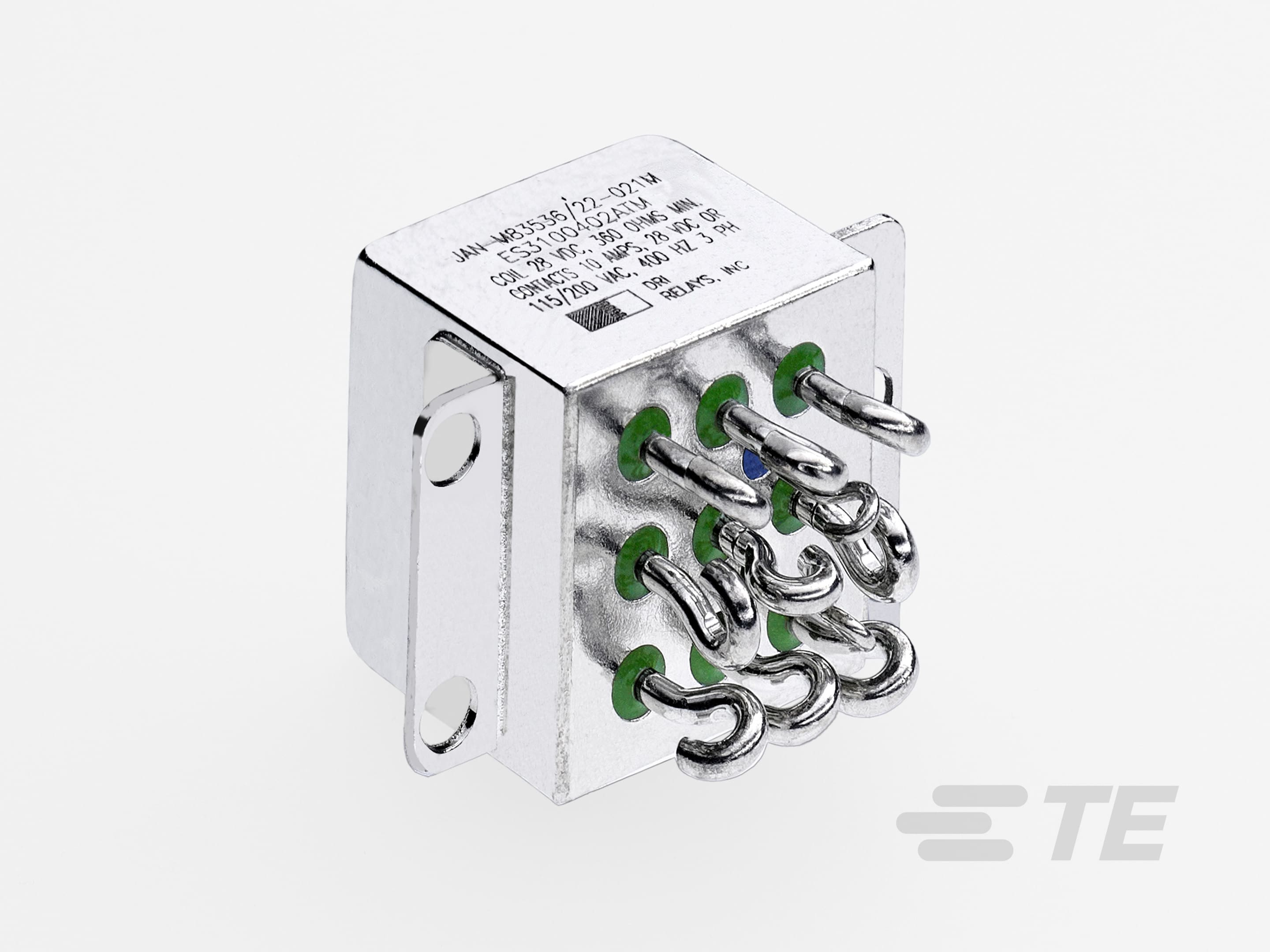

General Purpose Power Relay, DC, 3 Form C 3PDT-CO, 25 A Contact Rating, 28 VDC Coil Voltage, Hermetically Sealed, 125 °C [257 °F]
Technical Specifications
Parameters and characteristics for this part
| Specification | ES325EHAD |
|---|---|
| Coil Current | 96.6 mA |
| Coil Type | Non Latching |
| Coil Voltage | 28 VDC |
| Contact Form | 3 Form C, PDT |
| Contact Rating (Current) | 25 A |
| Load - Max Switching (Apparent Power) | 5000 VA |
| Load - Max Switching (Real Power) | 700 W |
| Mounting Type | Chassis Mount |
| Must Operate Voltage | 14 VDC |
| Must Release Voltage | 1.5 VDC |
| Operate Time | 15 ms |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -70 °C |
| Pin Count | 3 pins |
| Relay Type | General Purpose |
| Release Time | 15 ms |
| Seal Rating | Sealed, Hermetically |
| Switching Voltage AC (Max) | 200 VAC |
| Switching Voltage DC (Max) | 28 VDC |
| Termination Style | PC Pin |
