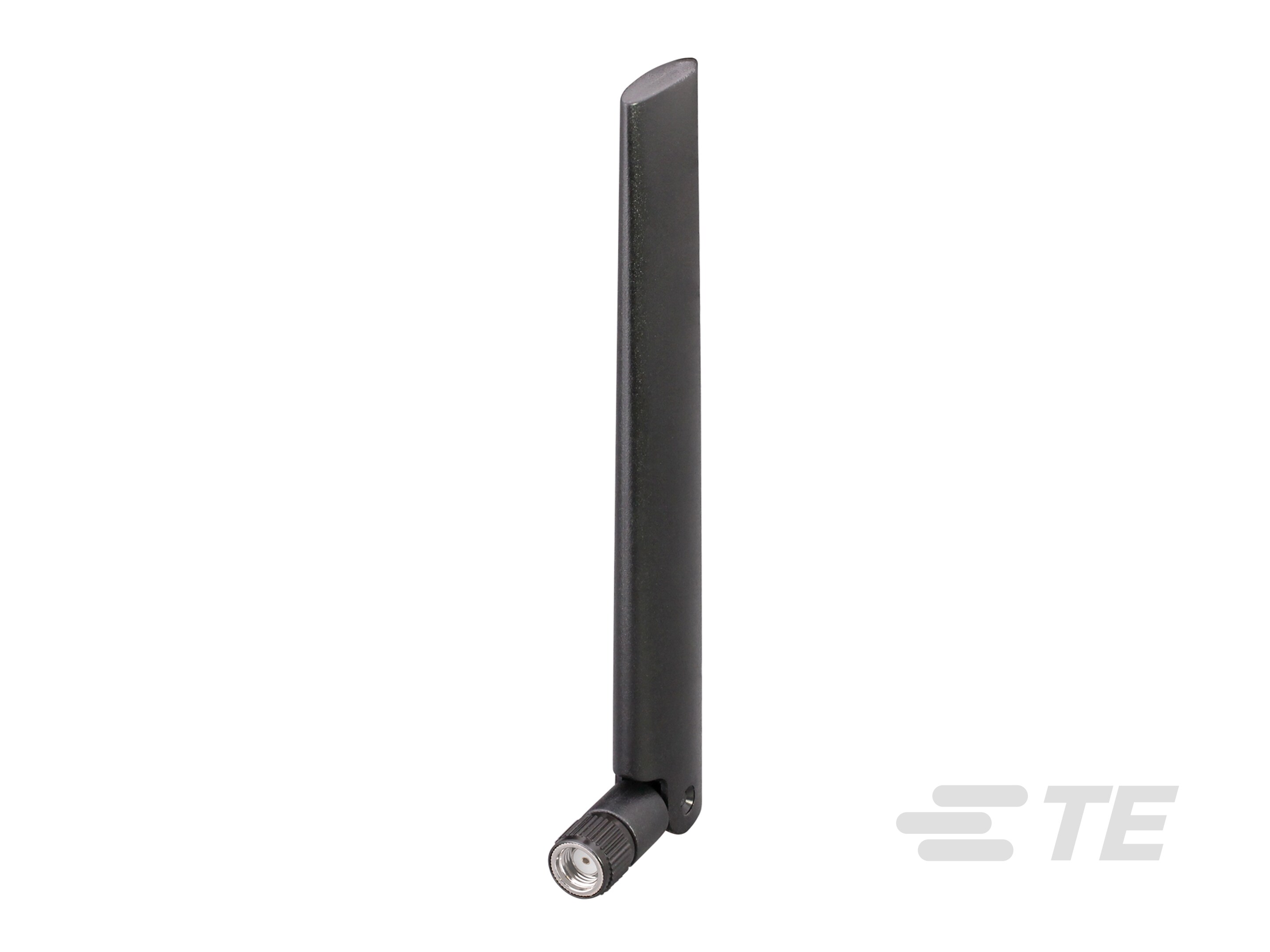

Antenna Blade Wifi6/6E Swivel RPS-ANT-W63WS2-RPS

ANT-W63WS2-RPS

Active
TE Connectivity AMP Connectors

ANTENNA BLADE WIFI6/6E SWIVEL RPS

Find alt
Antenna Blade Wifi6/6E Swivel RPS-ANT-W63WS2-RPS

ANT-W63WS2-RPS

Active
TE Connectivity AMP Connectors

ANTENNA BLADE WIFI6/6E SWIVEL RPS

Find alt

Description

General part information

ANT-W63WS2-RPS

Terminal/Duck Antenna, Triple Band, Wi-Fi, External Mount, Stud/Screw/Lug Mount, N-type, Omnidirectional, Single Port, 3 < 6 dBi Peak Gain

Technical Specifications

Parameters and characteristics for this part

SpecificationANT-W63WS2-RPS
Antenna TypeTilt, Blade
ApplicationsWi-Fi
Frequency (Center/Band)5.5GHz, 6.525GHz, 2.4425GHz
Frequency (Center/Band) - 12.4425 GHz
Frequency (Center/Band) - 25.5 GHz
Frequency (Center/Band) - 36.525 GHz
Frequency GroupWide Band
Frequency Range (Band 1) Maximum2.485 GHz
Frequency Range (Band 1) Minimum2.4 GHz
Frequency Range (Band 2) Maximum5.85 GHz
Frequency Range (Band 2) Minimum5.15 GHz
Frequency Range (Band 3) Maximum7.125 GHz
Frequency Range (Band 3) Minimum5.925 GHz
Gain4.7dBi, 4.8dBi, 2.1dBi
Gain2.1 dBi, 4.8 dBi, 4.7 dBi
Height (Max)5.256 in
Mounting TypeConnector Mount
Number of Bands3
Power - Max30 W
RF Family/StandardWiFi
Termination TypeRP-SMA Male
VSWR1.5
