187BL
ActiveSWITCHCRAFT/CONXALL
CONN PLUG MONO 6.35MM 2COND
187BL
ActiveSWITCHCRAFT/CONXALL
CONN PLUG MONO 6.35MM 2COND
Description
General part information

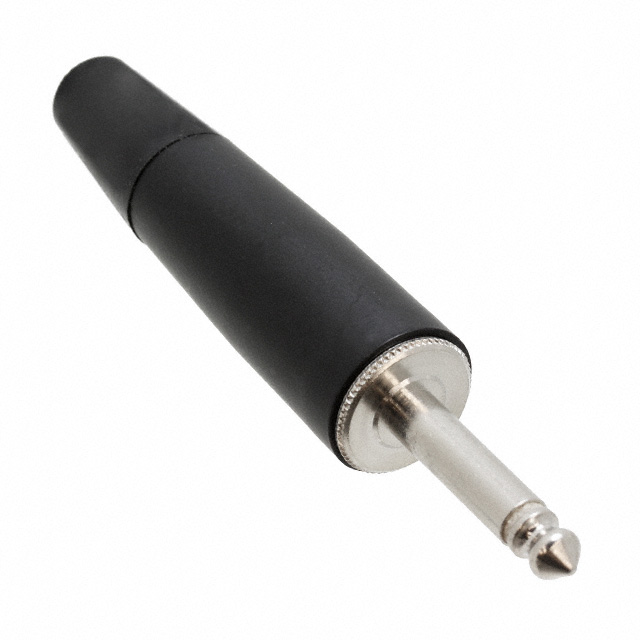

187BL
6.35mm (0.250", 1/4") - Headphone Phone Plug Mono Connector Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | 187BL |
|---|---|
| Actual Diameter | 0.25 in |
| Body Color | Black, Silver |
| Body Material | Brass |
| Connector Type | Phone Plug |
| Contact Material | Brass |
| Contact Material - Plating | Nickel |
| Gender | Male |
| Housing Material | Zinc, Epoxy Coating |
| Includes | Connector, Handle, Insulator Tube |
| Includes Total Count | 3 pcs |
| Industry Recognized Mating Diameter (Headphone) | 6.35 mm |
| Internal Switch(s) | Does Not Contain Switch |
| Mating Length/Depth | 1.2 in |
| Mounting Type | Free Hanging (In-Line) |
| Number of Conductors | 2 Conductors |
| Number of Contacts | 2 Contacts |
| Shielding | Unshielded |
| Signal Lines | Mono |
| Termination | Solder |
