34071
ActiveTE Connectivity AMP Connectors
CONN SPLICE 14-16 AWG CRIMP
34071
ActiveTE Connectivity AMP Connectors
CONN SPLICE 14-16 AWG CRIMP
Description
General part information
34071

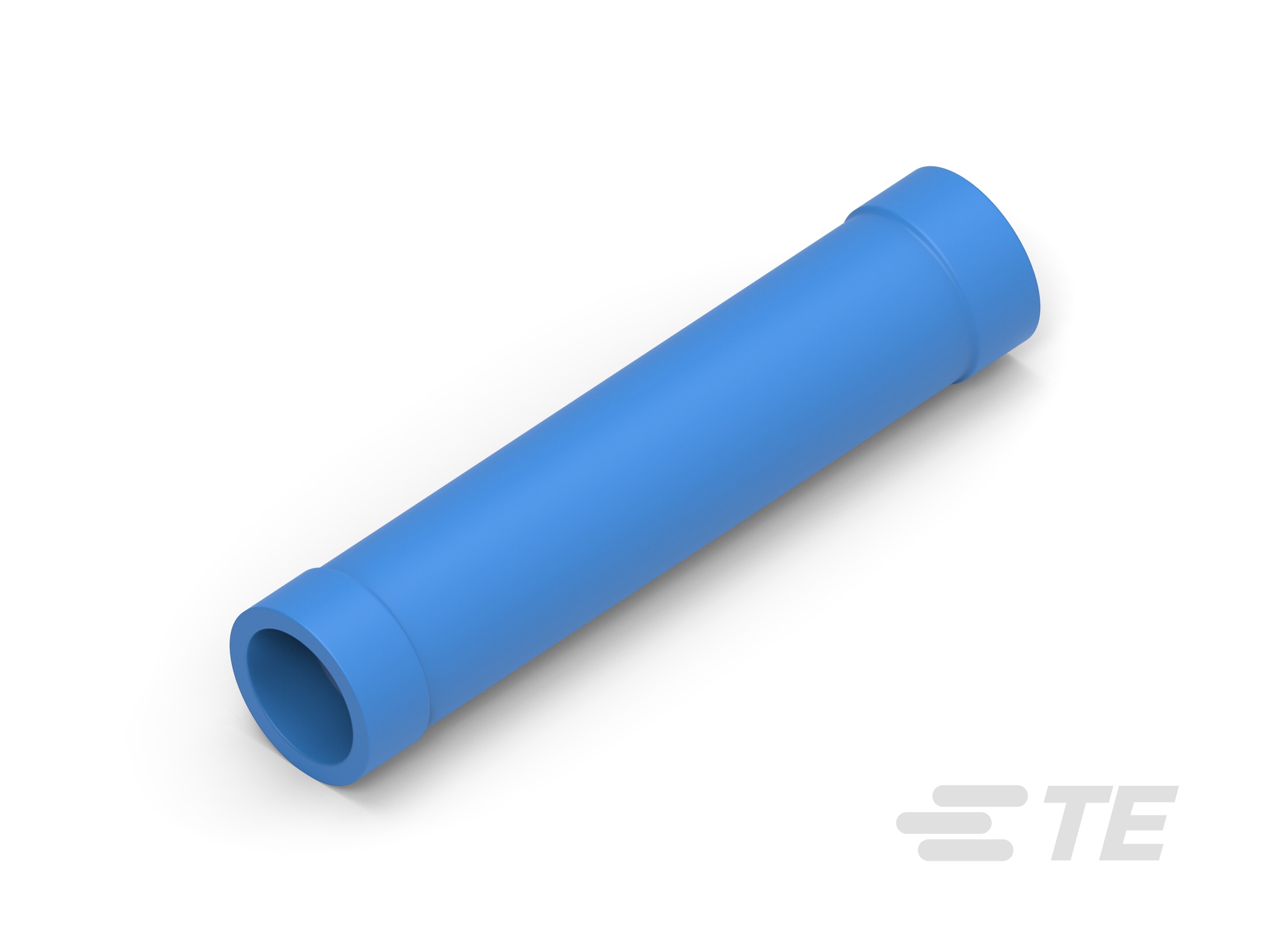

Butt Splice, 16 – 14 AWG, 1.04 – 2.62 mm² Wire, Serrated, 2050 – 5180 CMA, Copper, Blue, 8 Serration, 27.05 mm [1.065 in] Length, PLASTI-GRIP
Technical Specifications
Parameters and characteristics for this part
| Specification | 34071 |
|---|---|
| Color | Blue |
| Features | Serrated Mating Area |
| Insulation | Fully Insulated |
| Number of Wire Entries | 2 |
| Terminal Type | Inline, Individual Openings, Butt Splice |
| Termination | Crimp |
| Wire Gauge (AWG) (Max) | 16 AWG |
| Wire Gauge (AWG) (Min) | 14 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
PLASTI-GRIP INSULATED BUTT SPLICES, TERMNAL SPLICES AND TERMINALS REPORT
Pressure Type Wire Connectors Wire Combinations PLASTI-GRIP Splices (Use Tooling for PLASTI-GRIP Splices)
PLASTI GRIP Terminals and Splices
ENG_CD_34071_M4.pdf
Plastic-Grip and Solistrand terminal, butt and parallel connectors
Datasheet
Plastic-Grip terminals
WIRE CONN, TERMINALS, BUTT AND PARALLEL CONNECTORS-PLASTI-GRIP, SOLISTRAND, STD B, DIAMOND GRIP, PIDG AND AMPOWER REPORT
34071 | Datasheet
