Description
General part information

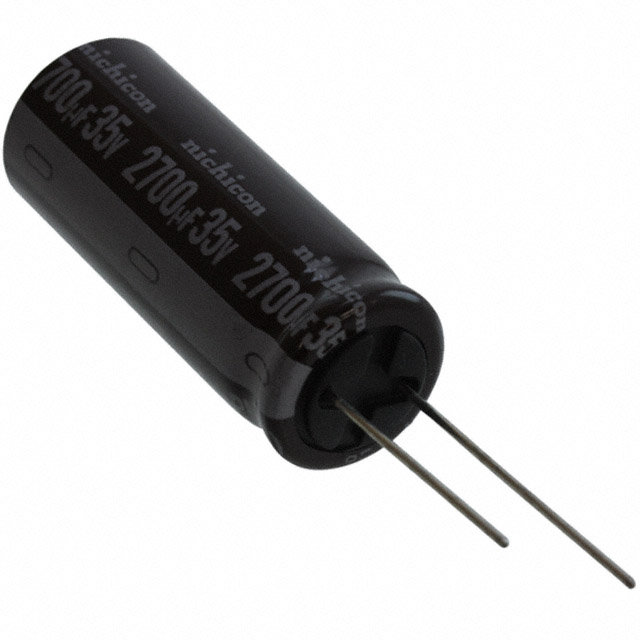

UPM1V272MHD
2700 µF 35 V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C
Technical Specifications
Parameters and characteristics for this part
| Specification | UPM1V272MHD |
|---|---|
| Applications | Automotive |
| Capacitance | 2700 µF |
| Height - Seated (Max) | 1.575 in |
| Impedance | 18 mOhm |
| Lead Spacing | 0.295 in |
| Lifetime | 5000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Can, Radial |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Ripple Current | 2.79 A, 3.11 A |
| Size / Dimension Diameter | 0.63 in |
| Tolerance | 20 % |
| Voltage - Rated | 35 V |
