EE-SX4350
ActiveOmron Electronics Inc-EMC Div
SENSOR OPTICAL 5MM MOD SLOT TYPE
EE-SX4350
ActiveOmron Electronics Inc-EMC Div
SENSOR OPTICAL 5MM MOD SLOT TYPE
Description
General part information
EE-SX4350

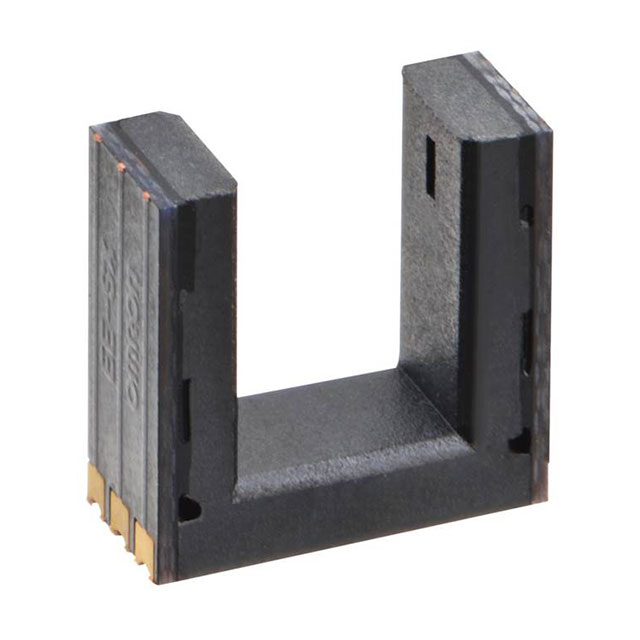

Optical Sensor Through-Beam 0.197" (5mm) Module, No Lead, Slot Type
Technical Specifications
Parameters and characteristics for this part
| Specification | EE-SX4350 |
|---|---|
| Current - Supply | 30 mA |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -30 °C |
| Output Configuration | NPN - Open Collector, Light-ON |
| Package / Case | Slot Type, No Lead, Module |
| Response Time | 6 µs |
| Sensing Distance | 0.197 " |
| Sensing Method | Through-Beam |
| Voltage - Supply | 16 V |
