MCT024L6W240320PML
ActiveMidas Displays

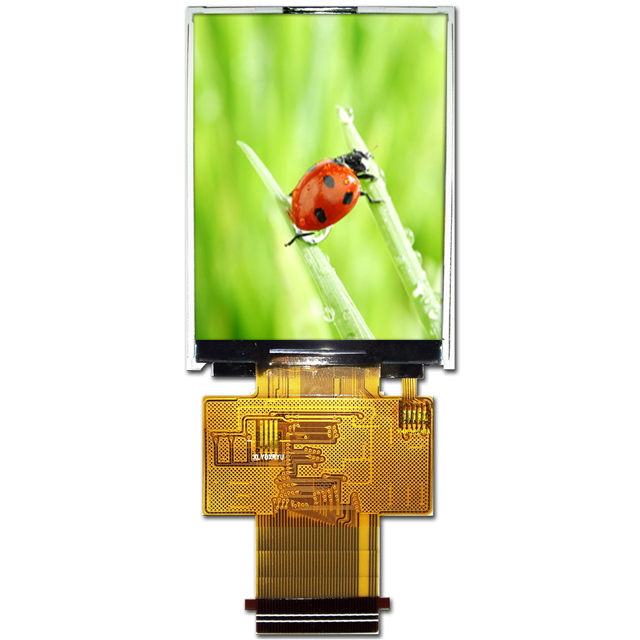

GRAPHIC DISPLAY TFT RGB 2.4"
MCT024L6W240320PML
ActiveMidas Displays
GRAPHIC DISPLAY TFT RGB 2.4"
Description
General part information
MCT024L6W240320PML
Non-Touch Graphic LCD Display Module Transmissive Red, Green, Blue (RGB) TFT - Color MCU, 16-Bit (RGB) 2.4" (60.96mm) 240 x 320
Technical Specifications
Parameters and characteristics for this part
| Specification | MCT024L6W240320PML |
|---|---|
| Background Color | Black |
| Backlight Color | White |
| Backlight Type | LED |
| Controller Type | ILI9341 |
| Diagonal Screen Size | 2.4 in |
| Display Mode | Transmissive |
| Display Type | TFT - Color |
| Dot Pixels (Horizontal) | 240 pixels |
| Dot Pixels (Vertical) | 320 pixels |
| Graphics Color | Red, Green, Blue |
| Interface | MCU |
| Interface Data Width | 16 Bit |
| Touchscreen | Non-Touch |
| Viewing Area Height | 48.96 mm |
| Viewing Area Width | 36.72 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
