Description
General part information
3321-18-1-0500-004-1-TS

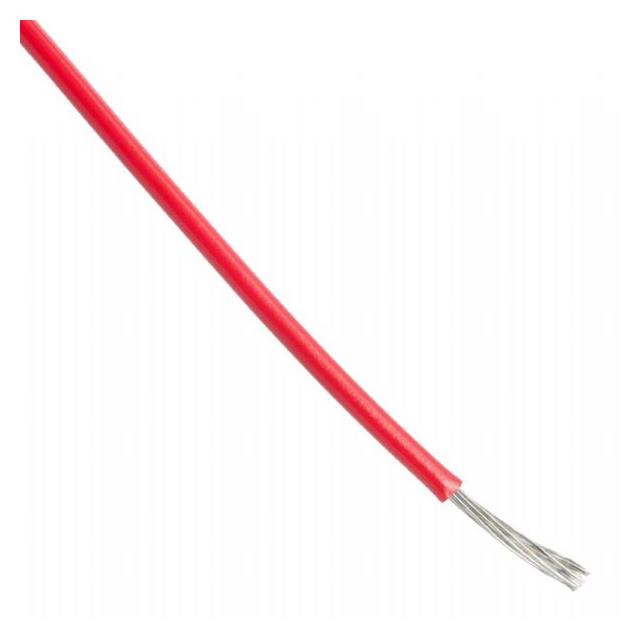

18 AWG Hook-Up Wire 16/0.0100" Red 600V 500.0' (152.4m)
Technical Specifications
Parameters and characteristics for this part
| Specification | 3321-18-1-0500-004-1-TS |
|---|---|
| Cable Type | Hook-Up |
| Conductor Material | Tinned, Copper |
| Conductor Strand Count | 34, 16 |
| Conductor Strand Diameter | 0.0071 in, 0.01 in |
| Jacket (Insulation) Diameter | 0.11 in |
| Jacket (Insulation) Material | Polyethylene (XLPE), Irradiated |
| Jacket (Insulation) Thickness | 0.032 in |
| Jacket Color | Red |
| Length | 500 ft |
| Length | Enter Number of Feet in Order Quantity |
| Operating Temperature | 150 °C |
| Ratings | Style, 3321, UL |
| Spool Size | 500 ft |
| Voltage | 600 V |
| Wire Gauge | 18 AWG |
