200MMT
ActiveEaton - Electronics Division
FUSE CRTRDGE 200A 690VAC/500VDC
200MMT
ActiveEaton - Electronics Division
FUSE CRTRDGE 200A 690VAC/500VDC
Description
General part information
200MMT

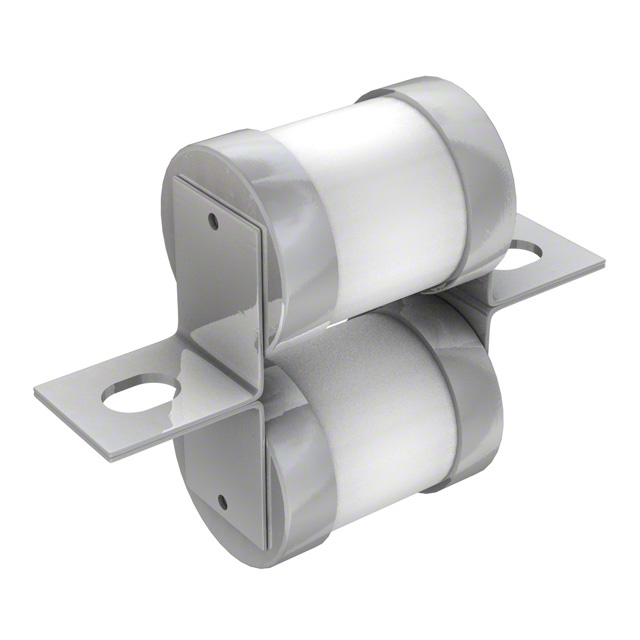

200A 690 VAC 500 VDC Fuse Cartridge Bolt Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | 200MMT |
|---|---|
| Applications | Electrical, Industrial |
| Approval Agency | UR |
| Breaking Capacity | 200 kA |
| Current Rating | 200 A |
| Fuse Type | Cartridge |
| Melting I²t | 2200 |
| Mounting Type | Bolt Mount |
| Package / Case | Rectangular, Blade |
| Size / Dimension Height | 3.268 in |
| Size / Dimension Length | 4.449 in |
| Size / Dimension Width | 1.5 in |
| Voltage Rating - AC | 690 V |
| Voltage Rating - DC | 500 V |
