UTSX7JC1210PW
ActiveAmphenol Aerospace Operations
JAM NUT RECEPTACLE, WITH CABLE G
UTSX7JC1210PW
ActiveAmphenol Aerospace Operations
JAM NUT RECEPTACLE, WITH CABLE G
Description
General part information
UTSX7JC1210PW

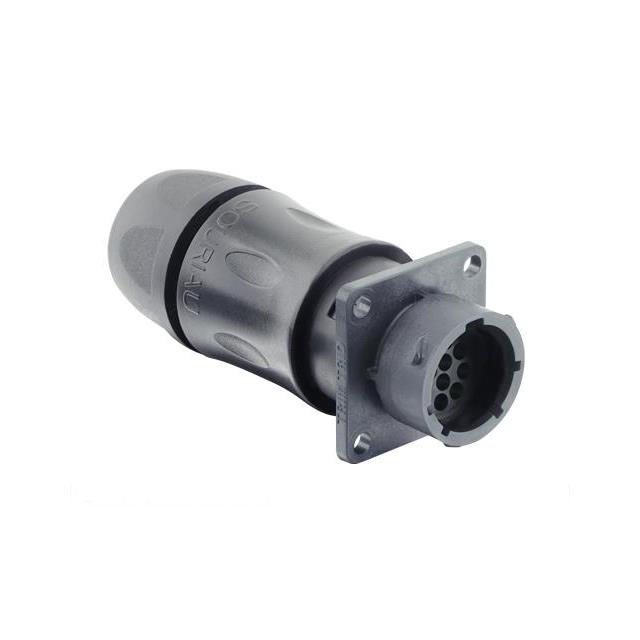

10 Position Circular Connector Receptacle Housing Panel Mount Backshell, UV Resistant
Technical Specifications
Parameters and characteristics for this part
| Specification | UTSX7JC1210PW |
|---|---|
| Connector Type | Receptacle Housing |
| Contact Shape | Circular |
| Contact Size | 20 |
| Contact Type | Crimp |
| Fastening Type | Bayonet Lock |
| Features | Backshell, UV Resistant |
| Housing Color | Black |
| Includes | O-Ring, Nut, Connector |
| Includes Total Count | 3 pcs |
| Ingress Protection Description | Water Resistant, Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP69K, IP68 |
| Insert Material | PA, Nylon, Polyamide |
| Material Flammability Rating | UL94 V-0 |
| Mounting Feature | Bulkhead, Front Side Nut |
| Mounting Type | Panel Mount |
| Note | Contacts Not Included |
| Number of Positions | 10 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Orientation | W |
| Primary Material | Plastic |
| Shell Material | Nylon, Polyamide (PA) |
| Shell Size - Insert Length | 12 mm |
| Shell Size - Insert Width | 10 mm |
| Shielding | Unshielded |
| Type | For Male Pins |
