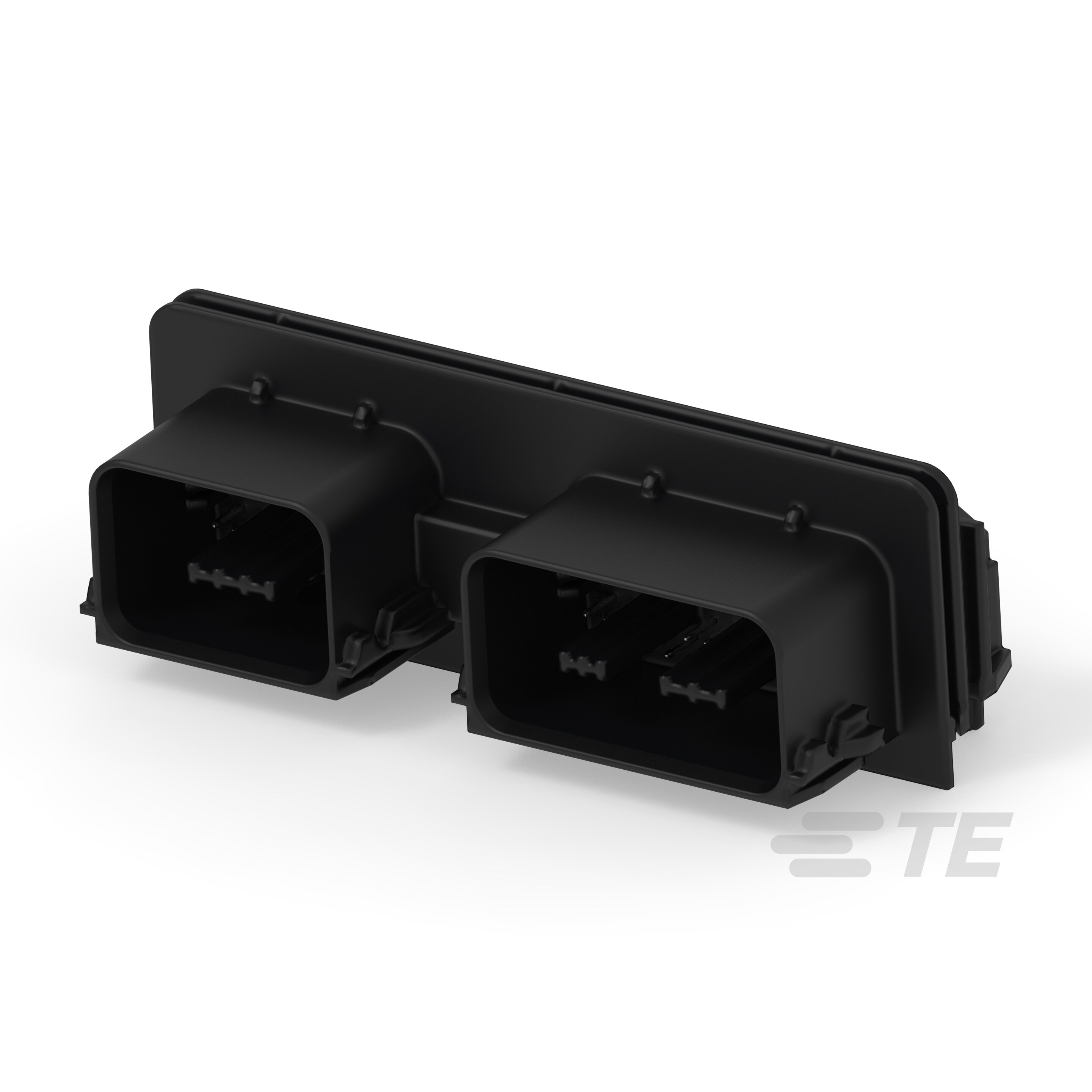

1-2296215-1

1-2296215-1

Active
TE Connectivity AMP Connectors

ACU 76P HDR ASSY(FREE CODE)

Find alt
1-2296215-1

1-2296215-1

Active
TE Connectivity AMP Connectors

ACU 76P HDR ASSY(FREE CODE)

Find alt

Description

General part information

1-2296215-1

Horizontal, Wire-to-Board, 88 Position, 4 Rows, 2.54mm [.1in] Centerline, Gold (Au), Printed Circuit Board, Black, Board Mount

Technical Specifications

Parameters and characteristics for this part

Specification1-2296215-1
Connector TypeHeader
Contact Finish - MatingGold
Contact Finish Thickness - Mating31.5 µin
Contact Length - Mating0.217 in
Contact Length - Post0.134 in
Contact MaterialCopper Alloy
Contact ShapeRectangular
Contact TypeTab
Current Rating7.5 A
Fastening TypePush-Pull
FeaturesBoard Guide
Insulation ColorBlack
Insulation MaterialPolybutylene Terephthalate (PBT), Glass Filled
Mounting TypeThrough Hole, Right Angle
Number of Positions88
Number of Positions LoadedAll
Number of Rows4
Pitch - Mating0.1 in
Row Spacing - Mating0.098 in
ShroudingShrouded - 4 Wall
StyleCable/Wire, Board
TerminationSolder
