Description
General part information

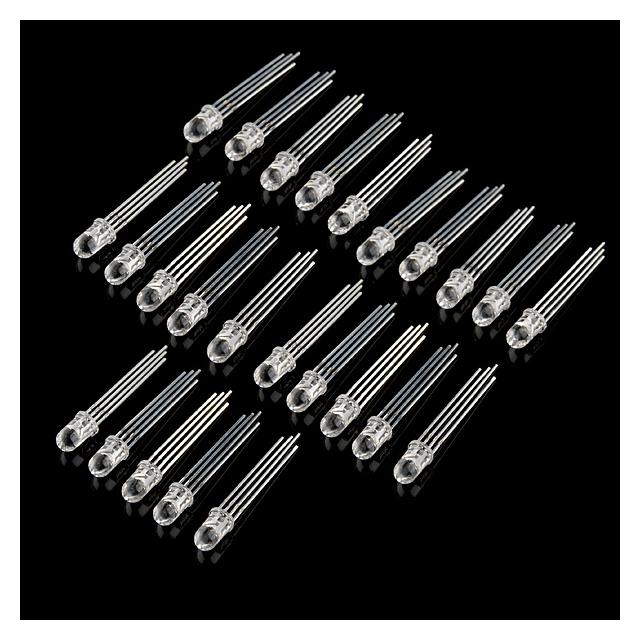

COM-10819
Red, Green, Blue (RGB) LED Indication - Discrete 2V Red, 3.2V Green, 3.2V Blue Radial - 4 Leads
Technical Specifications
Parameters and characteristics for this part
| Specification | COM-10819 |
|---|---|
| Color | Blue (RGB), Green, Red |
| Configuration | Common Anode |
| Current - Test (Blue) | 20 mA |
| Current - Test (Green) | 20 mA |
| Current - Test (Red) | 20 mA |
| Current - Test Colors | Red, Blue, Green |
| Height (Max) | 8.9 mm |
| Lens Size | 5 mm |
| Lens Size (Code) | T-1 3/4 |
| Lens Style | Round, Domed Top |
| Lens Transparency | Clear |
| Mounting Type | Through Hole |
| Package Leads | 4 Leads |
| Package Name | Radial |
| Size / Dimension Diameter | 5 mm |
| Supplier Device Package | 5 mm |
| Voltage - Forward (Vf) (Typ) (Blue) | 3.2 V |
| Voltage - Forward (Vf) (Typ) (Green) | 3.2 V |
| Voltage - Forward (Vf) (Typ) (Red) | 2 V |
| Voltage - Forward (Vf) (Typ) Color | Red, Green, Blue |
| Wavelength - Peak (Blue) | 466 nm |
| Wavelength - Peak (Green) | 518 nm |
| Wavelength - Peak (Red) | 623 nm |
| Wavelength - Peak Colors | Blue, Green, Red |
