LCAD30038
ActivePasternack

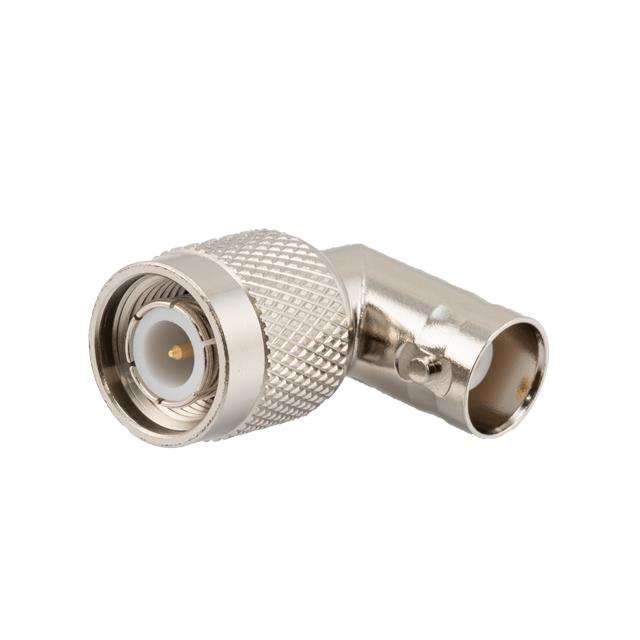

TNC MALE TO BNC R/A FEMALE
LCAD30038
ActivePasternack
TNC MALE TO BNC R/A FEMALE
Description
General part information
LCAD30038
Adapter Coaxial Connector BNC Jack, Female Socket To TNC Plug, Male Pin 50 Ohms
Technical Specifications
Parameters and characteristics for this part
| Specification | LCAD30038 |
|---|---|
| Adapter Series | BNC to TNC |
| Adapter Type | Plug to Jack |
| Body Finish | Nickel |
| Body Material | Brass |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Center Gender | Male, Female |
| Conversion Type | Between Series |
| Convert From (Adapter End) | BNC Jack, Female Socket |
| Convert To (Adapter End) Gender | Male Pin |
| Convert To (Adapter End) Type | TNC Plug |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Threaded, Bayonet Lock |
| Impedance | 50 Ohm |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature (Max) | 165 °C |
| Operating Temperature (Min) | -65 °C |
| Style | Right Angle |
