Description
General part information

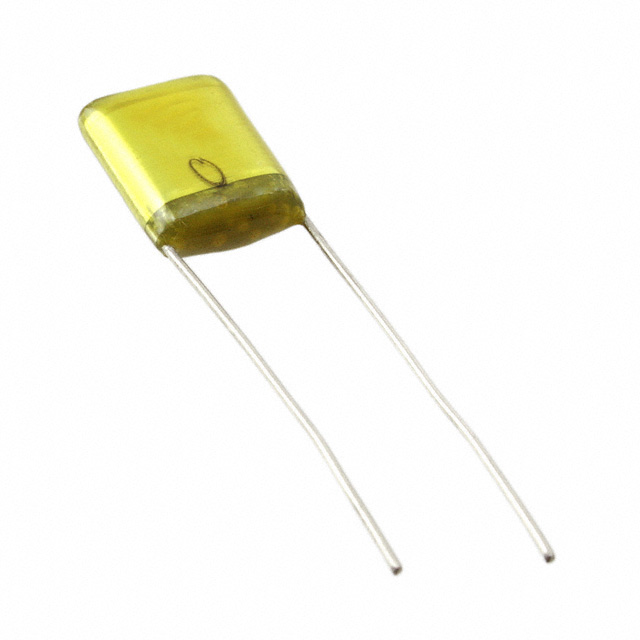

QYX2A563KTP
0.056 µF Film Capacitor 100V Polyester Radial
Technical Specifications
Parameters and characteristics for this part
| Specification | QYX2A563KTP |
|---|---|
| Applications | General Purpose |
| Capacitance | 56 nF |
| Dielectric Material | Polyester |
| Height - Seated (Max) | 0.551 in |
| Lead Spacing | 0.295 in |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Radial |
| Size / Dimension Length | 0.374 in |
| Size / Dimension Width | 0.177 in |
| Termination | PC Pins |
| Tolerance | 10 % |
| Voltage Rating - DC | 100 V |
