XB4BW31G5
ActiveINDUSTRIAL PUSHBUTTON SWITCH, HARMONY SERIES, 22.5 MM, SPST-NO, SPST-NC, MOMENTARY, FLUSH, WHITE
XB4BW31G5
ActiveINDUSTRIAL PUSHBUTTON SWITCH, HARMONY SERIES, 22.5 MM, SPST-NO, SPST-NC, MOMENTARY, FLUSH, WHITE
Description
General part information
XB4BW31G5

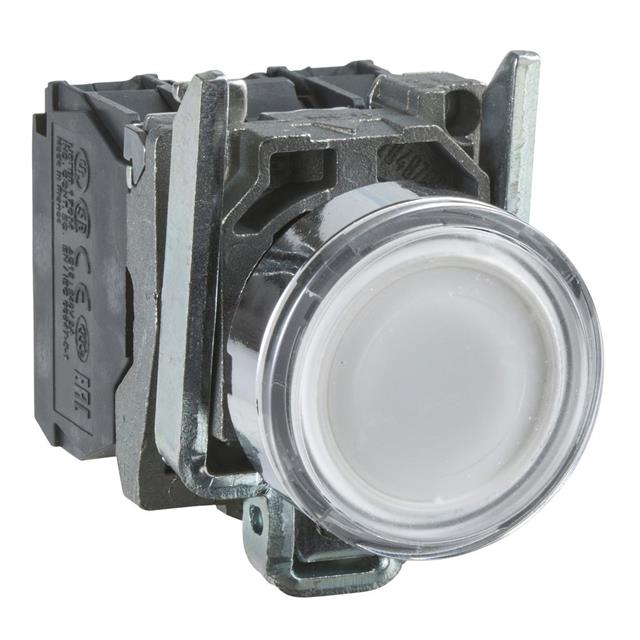

XB4BW31G5 is an illuminated pushbutton. It has standards like UL 508, EN/IEC 60947-1, JIS C8201-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, EN/IEC 60947-5-1, CSA C22.2 No 14, JIS C8201-1. It is certified by LROS (Lloyds register of shipping), GL, UL listed, DNV, CSA, BV.
Technical Specifications
Parameters and characteristics for this part
| Specification | XB4BW31G5 |
|---|---|
| Actuator Type | Round, Flush, Button |
| Circuit | DPST-NO/NC |
| Color | White |
| Color - Actuator/Cap | White |
| Current Rating | 550 mA, 6 A |
| Electrical Life (Cycles) | 1000000 Cycles |
| Illumination Type | LED |
| Illumination Voltage (Nominal) (Maximum) | 220 VAC |
| Illumination Voltage (Nominal) (Minimum) | 110 VAC |
| Ingress Protection Description | Waterproof, Water Resistant, Dust Tight |
| Ingress Protection IP Rating | IP69K, IP69, IP67, IP66 |
| Mechanical Life (Cycles) | 10000000 Cycles |
| Mounting Type | Front, Panel Mount |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -40 °C |
| Panel Cutout Diameter | 22 mm |
| Panel Cutout Shape | Circular |
| Switch Function | On-Off, Off-On |
| Termination Style | Screw Terminal |
| Type | Standard, Illuminated |
| Voltage Rating - AC | 120 V |
| Voltage Rating - DC | 125 V |
