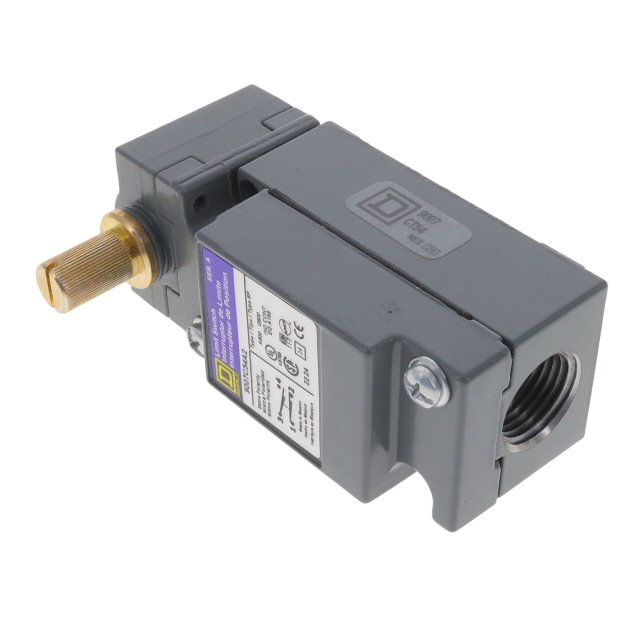

Specification	9007C54A2

Actuator Type	No Lever, Side Rotary
Circuit	SPDT (DB/DM)
Current Rating	100 mA, 1.2 A
Electrical Life (Cycles)	1000000 Cycles
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
Mechanical Life (Cycles)	10000000 Cycles
Mounting Type	Chassis Mount
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-29 °C
Switch Function	On-Mom
Termination Style	Screw Terminal
Voltage Rating - AC	600 VAC
Voltage Rating - DC	600 V
