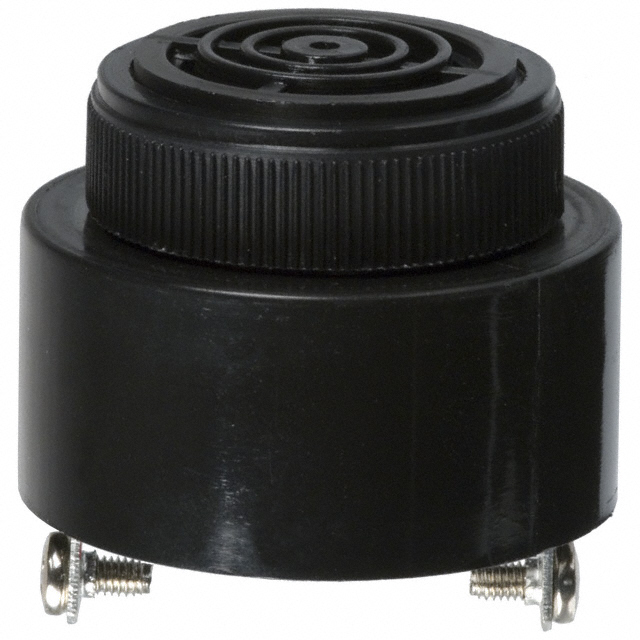

AI-4228-P-C28D-R

AI-4228-P-C28D-R

Obsolete
PUI Audio, Inc.

BUZZER PIEZO 12V 42.5MM PNL MNT

Find alt
AI-4228-P-C28D-R

AI-4228-P-C28D-R

Obsolete
PUI Audio, Inc.

BUZZER PIEZO 12V 42.5MM PNL MNT

Find alt

Description

General part information

AI-4228-P-C28D-R

Buzzers Indicator, Internally Driven Piezo 12 V 10mA 2.8kHz 90dB @ 12V, 10cm Panel Mount Screw Terminal, Quick Connect Tab - 0.256" (6.50mm)

Technical Specifications

Parameters and characteristics for this part

SpecificationAI-4228-P-C28D-R
Approval AgencycUL, UL
Current - Supply10 mA
Driver CircuitryIndicator, Internally Driven
Frequency2.8 kHz
Height - Seated (Max)1.299 in
Input TypeDC
Mounting TypePanel Mount
Operating ModeSingle Tone
Operating Temperature (Max)85 °C
Operating Temperature (Min)-30 °C
Port LocationTop
Size / Dimension Diameter1.673 in
Sound Pressure Level (SPL)90 dB
TechnologyPiezo
TerminationQuick Connect Tab - (6.50mm), Quick Connect Tab, Screw Terminal
Termination Probe Tip OD0.256 in
Voltage - Rated12 VAC
Voltage Range (Max)28 V
Voltage Range (Min)6 VDC
