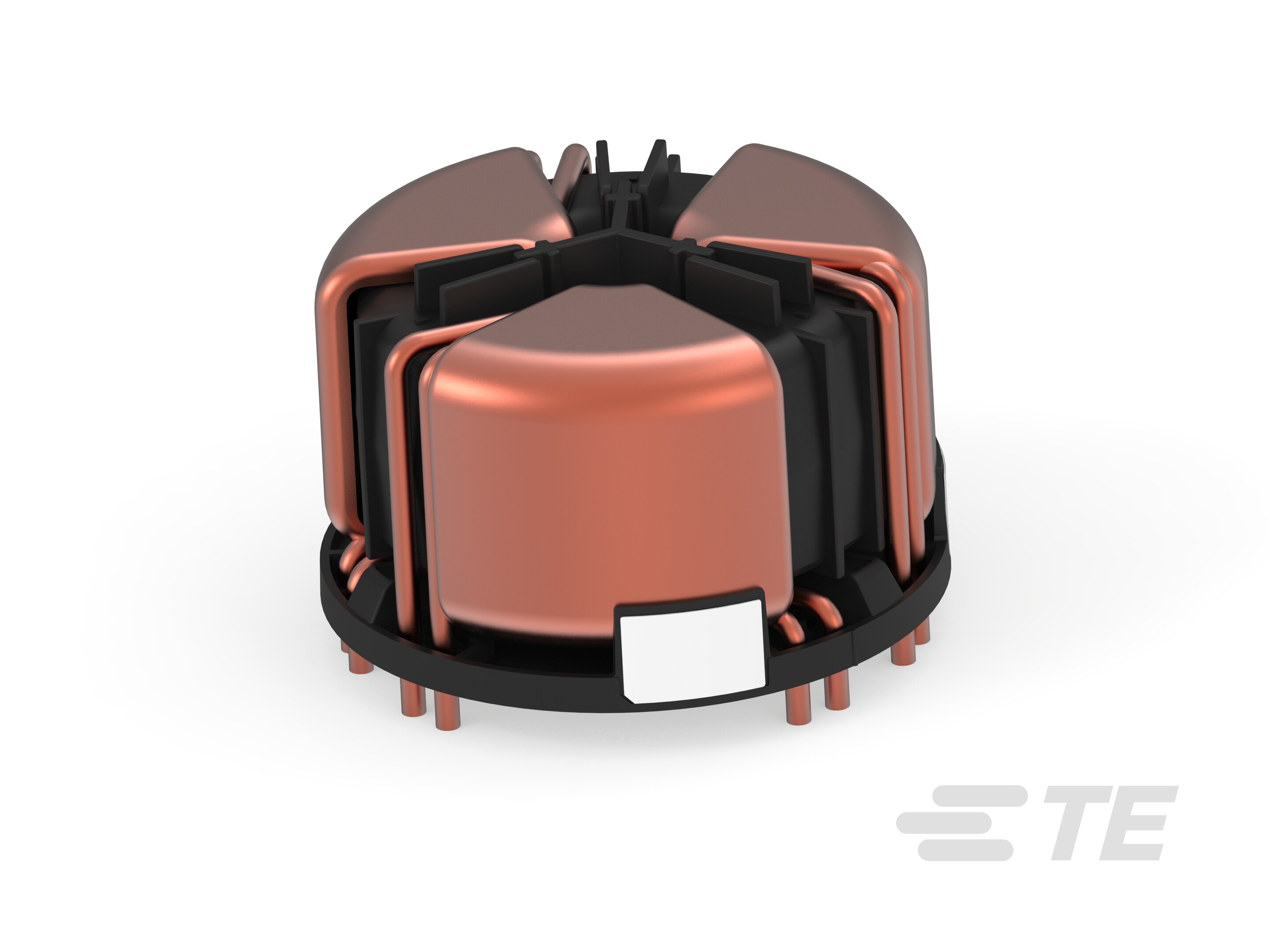

Specification	RT8132-63-0M3

Approval Agency	UR
DC Resistance (DCR) (Max)	0.7 mOhm
Filter Type	Power Line
Height (Max)	1.654 in
Inductance	300 µH
Lead Count	12
Mounting Type	Through Hole
Number of Lines	3
Operating Temperature (Max)	100 °C
Operating Temperature (Min)	-40 °C
Package / Case	Horizontal
Package Name	Horizontal
Pad Count	12 PC Pin
Pin Count	12
Size / Dimension Diameter	2.598 in
Voltage Rating - AC	600 VAC

Schaffner RT-Series Series

...

Part	Number of Lines	Package / Case	Package Name	Package Leads	Operating Temperature (Max)	Operating Temperature (Min)	DC Resistance (DCR) (Max)	Size / Dimension Length	Size / Dimension Width	Voltage Rating - AC	Mounting Type	Filter Type	Height (Max)	Inductance	Approval Agency	Pin Count	Pad Count	Voltage Rating - DC	Current Rating (Max)	DC Resistance (DCR) (Typ)	Size / Dimension Diameter	Features
TE Connectivity AMP Connectors RT8532-63-0M3	3	10 PC Pin Vertical	Vertical	10 PC Pin	100 °C	-40 °C	0.8 mOhm	2.52 in	1.654 in	600 VAC	Through Hole	Power Line	2.638 in	300 µH	UR
TE Connectivity AMP Connectors RT8522-63-0M5	2	Vertical	Vertical	8 PC Pin	100 °C	-40 °C	1 mOhm	2.52 in	1.654 in	300 V	Through Hole	Power Line	2.52 in	500 µH	UR	8	8 PC Pin	425 VDC
TE Connectivity AMP Connectors RT8522-12-5M0	2	4 PC Pin Vertical	Vertical	4 Leads	100 °C	-40 °C	14 mOhm	1.969 in	1.26 in	300 V	Through Hole	Power Line	2.047 in	5 mH				425 VDC	12 A	14 mOhm
TE Connectivity AMP Connectors RT8132-6-6M0	3	6 PC Pin Horizontal	Horizontal		100 °C	-40 °C	27 mOhm			600 VAC	Through Hole	Power Line	1.339 in	6 mH			6 PC Pin		6 A	27 mOhm
TE Connectivity AMP Connectors RT8122-12-5M0	2	4 PC Pin Horizontal	Horizontal	4 Leads	100 °C	-40 °C	14 mOhm			300 V	Through Hole	Power Line	1.299 in	5 mH				425 VDC	12 A	14 mOhm	2.008 in
TE Connectivity AMP Connectors RT8532-63-0M3	3	10 PC Pin Vertical	Vertical	10 PC Pin	100 °C	-40 °C	0.8 mOhm	2.52 in	1.654 in	600 VAC	Through Hole	Power Line	2.638 in	300 µH	UR
TE Connectivity AMP Connectors RT8122-50-1M0	2		Horizontal	8 Leads	100 °C	-40 °C	1.7 mOhm			300 V	Through Hole	Power Line	1.614 in	1 mH	UR		8 PC Pin	425 VDC			2.598 in
TE Connectivity AMP Connectors RT8521-63-4M4	2	4 PC Pin Vertical	Vertical	4 Leads	100 °C	-40 °C		2.52 in	1.654 in	300 V	Through Hole	Power Line	2.52 in	4.4 mH	UR			600 V	63 A			Nanocrystalline Core
TE Connectivity AMP Connectors RT8531-32-10M1	3	Vertical	Vertical		100 °C	-40 °C		2.362 in	1.496 in	600 VAC	Through Hole	Power Line	2.48 in	10.1 mH	UR	6	6 PC Pin		32 A			Nanocrystalline Core
TE Connectivity AMP Connectors RT8532-20-2M5	3	Vertical	Vertical		100 °C	-40 °C	7 mOhm	2.205 in	1.457 in	600 VAC	Through Hole	Power Line	2.362 in	2.5 mH		6	6 PC Pin		20 A	7 mOhm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

Datasheet

Current Compensated Chokes - Ferrite Core

RT8132-63-0M3 | Datasheet
