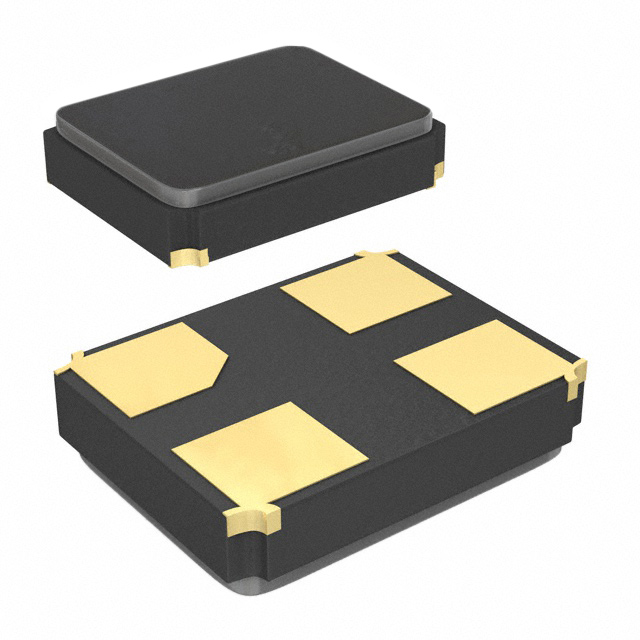

STDCRG1-30M
ActiveNDK (NIHON DEMPA KOGYO CO., LTD)
CRYSTAL 30.0000MHZ 8PF SMD
STDCRG1-30M
ActiveNDK (NIHON DEMPA KOGYO CO., LTD)
CRYSTAL 30.0000MHZ 8PF SMD
Description
General part information
STDCRG1-30M
30 MHz ±20ppm Crystal 8pF 50 Ohms 4-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | STDCRG1-30M |
|---|---|
| ESR (Equivalent Series Resistance) | 50 Ohm |
| Frequency | 30 MHz |
| Frequency Stability | 30 ppm |
| Frequency Tolerance | 20 ppm |
| Height - Seated (Max) | 0.035 in |
| Load Capacitance | 8 pF |
| Mounting Type | Surface Mount |
| Operating Mode | Fundamental |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -10 °C |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension Length | 0.126 in |
| Size / Dimension Width | 0.098 in |
| Type | MHz Crystal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
