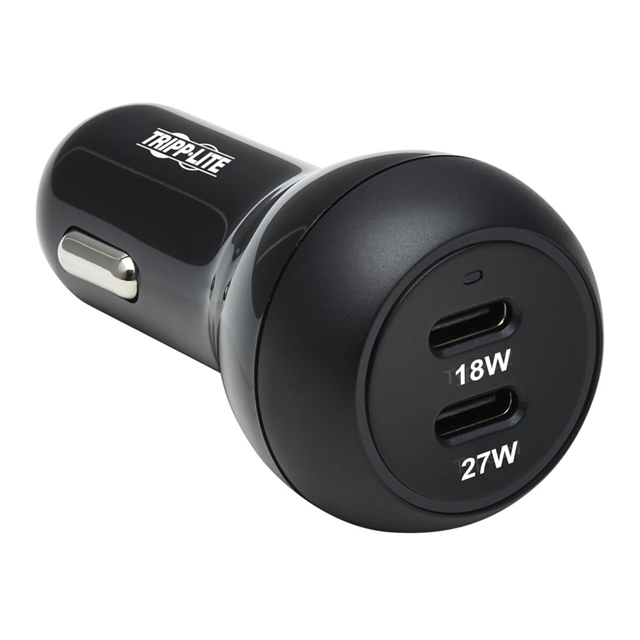

U280-C02-45W-2B
ActiveEaton Tripp Lite
45W DUAL USB-C PD CAR CHARGER
U280-C02-45W-2B
ActiveEaton Tripp Lite
45W DUAL USB-C PD CAR CHARGER
Description
General part information
U280-C02-45W-2B
USB Auto Adapter Battery Charger 2A, 3A
Technical Specifications
Parameters and characteristics for this part
| Specification | U280-C02-45W-2B |
|---|---|
| Approval Agency | FCC, CE |
| Battery Chemistry | Mobile Devices |
| Charge Current - Max | 3A, 2A |
| Charge Current - Max | 2 A, 3 A |
| Mounting Type | Auto Socket |
| Number of Cells | 2 |
| Operating Temperature (Max) | 40 °C |
| Operating Temperature (Min) | 0 °C |
| Pin Count | 2 |
| Power - Max | 45 W |
| Size / Dimension Height | 0.77 in |
| Size / Dimension Length | 1.28 in |
| Size / Dimension Width | 1.99 in |
| Termination Count | 2 |
| Termination Style | USB C Receptacle, USB C Receptacle (2) |
| Type | USB Auto Adapter |
| Voltage - Input | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
