Description
General part information

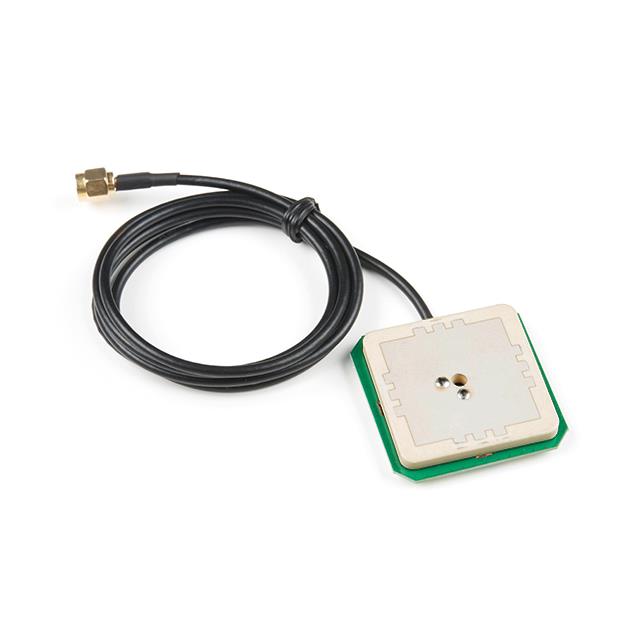

GPS-14987
1.586GHz Beidou, GLONASS, GNSS, GPS Ceramic Patch RF Antenna 1.558GHz ~ 1.615GHz 4dB SMA Surface Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | GPS-14987 |
|---|---|
| Antenna Type | Ceramic Patch |
| Applications | GLONASS, GNSS, BEIDOU, GPS |
| Features | LNA, Cable, 1m |
| Frequency (Center/Band) | 1.586 GHz |
| Frequency Group | UHF |
| Frequency Group Maximum (UHF) | 2 GHz |
| Frequency Group Minimum (UHF) | 1 GHz |
| Frequency Range (Max) | 1.615 GHz |
| Frequency Range (Min) | 1.558 GHz |
| Gain | 4 dB |
| Height (Max) | 0.354 in |
| Mounting Type | Surface Mount |
| Number of Bands | 3 |
| RF Family/Standard | Navigation |
| Termination | SMA |
