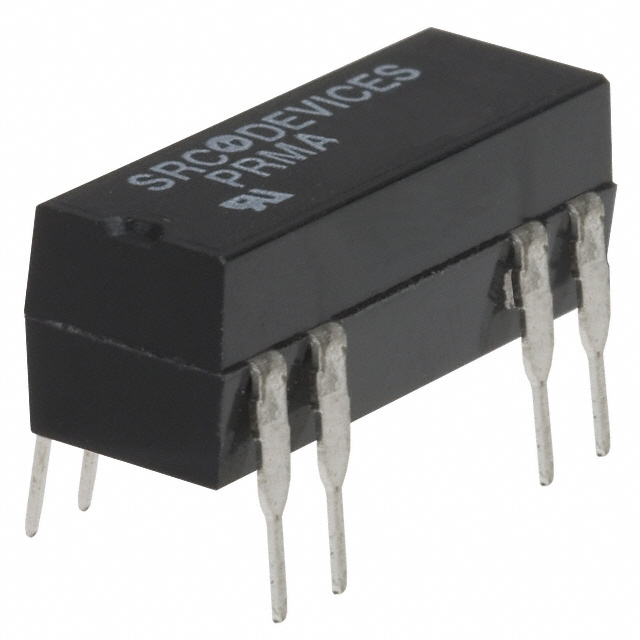

PRMA1C12
ObsoleteCOTO TECHNOLOGY
RELAY REED SPDT 250MA 12V
PRMA1C12
ObsoleteCOTO TECHNOLOGY
RELAY REED SPDT 250MA 12V
Description
General part information
PRMA1C12
RELAY REED SPDT 250MA 12V
Technical Specifications
Parameters and characteristics for this part
| Specification | PRMA1C12 |
|---|---|
| Coil Current | 24 mA |
| Coil Resistance | 500 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 12 VAC |
| Contact Form | C, 1, SPDT, Form |
| Contact Rating (Current) | 250 mA |
| Mounting Type | Through Hole |
| Must Operate Voltage | 9 VDC |
| Must Release Voltage | 1 VDC |
| Operate Time | 2 ms |
| Operating Temperature (Max) | 80 °C |
| Operating Temperature (Min) | -40 °C |
| Release Time | 3 ms |
| Switching Voltage AC (Max) | 100 VAC |
| Switching Voltage DC (Max) | 100 VDC |
| Termination Style | PC Pin |
