Description
General part information
ROB-12190
DC Motor Gearmotor 6 RPM 12VDC
Technical Specifications
Parameters and characteristics for this part
| Specification | ROB-12190 |
|---|---|
| Diameter - Shaft | 0.236 in |
| Function | Gearmotor |
| Gear Reduction Ratio | 500 |
| Length - Shaft and Bearing | 0.709 in |
| Mounting Hole Spacing | 1.22 in |
| RPM | 6 RPM |
| Size / Dimension Diameter | 1.457 in |
| Size / Dimension Shape | Round |
| Termination Style | Solder Tab |
| Type | DC Motor |
| Voltage - Rated | 12 VAC |
| Weight | 0.019 lb |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.

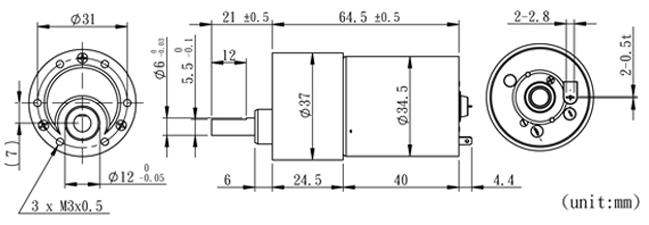

CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
