Description
General part information

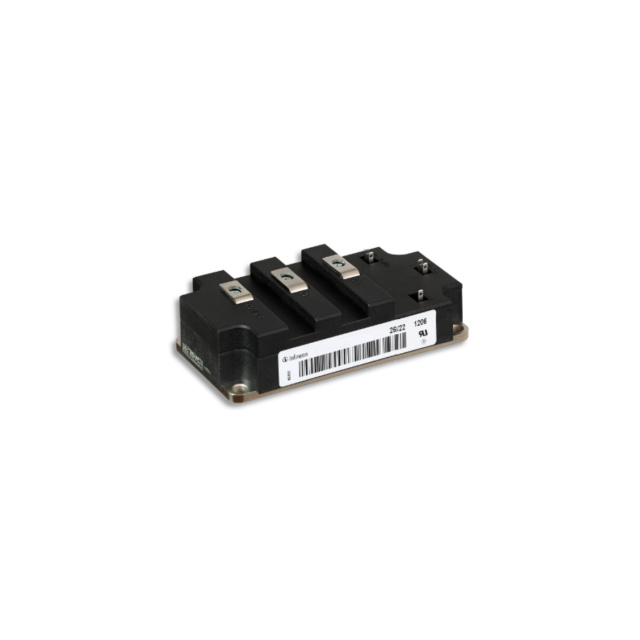

DD200S33K2CC1NOSA1
Diode Array 1 Pair Series Connection 3300 V 200A (DC) Chassis Mount Module
Technical Specifications
Parameters and characteristics for this part
| Specification | DD200S33K2CC1NOSA1 |
|---|---|
| Current - Average Rectified (Io) (per Diode) | 200 A |
| Diode Configuration | Series Connection |
| Diode Pair Count | 1 pair |
| Mounting Type | Chassis Mount |
| Operating Temperature - Junction (Max) | 125 °C |
| Operating Temperature - Junction (Min) | -40 °C |
| Package / Case | Module |
| Package Name | A-IHV73-3 |
| Speed | Standard Recovery |
| Speed - Fast Recovery (Minimum) | 200 mA, 500 ns |
| Speed - Recovery Current | 200 mA, 200 mA |
| Speed - Recovery Time | 500 ns |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) | 3300 V |
| Voltage - Forward (Vf) (Max) | 3.5 V |
