VY2331K29Y5SG6TV7
ActiveVishay Dale
CAP CER 330PF 440VAC Y5S RADIAL
VY2331K29Y5SG6TV7
ActiveVishay Dale
CAP CER 330PF 440VAC Y5S RADIAL
Description
General part information
VY2331K29Y5SG6TV7

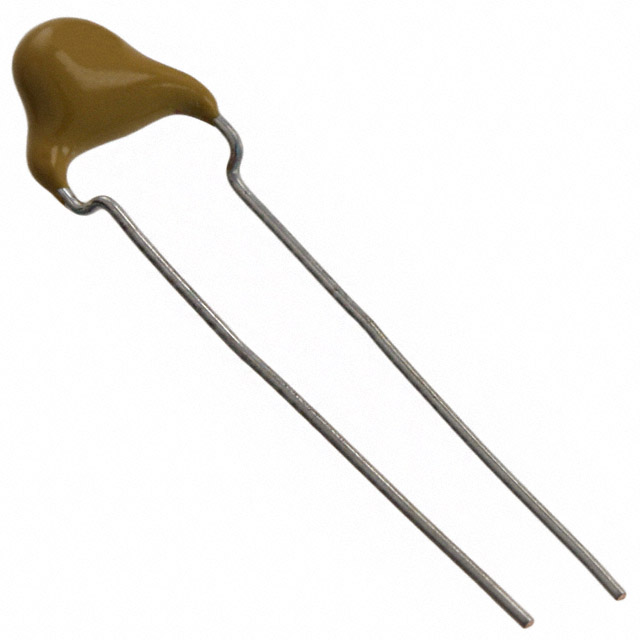

330 pF ±10% 440VAC Ceramic Capacitor Y5S Radial, Disc
Technical Specifications
Parameters and characteristics for this part
| Specification | VY2331K29Y5SG6TV7 |
|---|---|
| Applications | Safety |
| Capacitance | 330 pF |
| Height - Seated (Max) | 0.453 in |
| Lead Spacing | 0.295 in |
| Lead Style | Formed Leads - Kinked |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Disc, Radial |
| Ratings | Y2, X1 |
| Size / Dimension Diameter | 0.295 in |
| Temperature Coefficient | Y5S |
| Tolerance | 10 % |
| Voltage - Rated | 440 V |
