A8963-L
ActiveTE Connectivity AMP Connectors

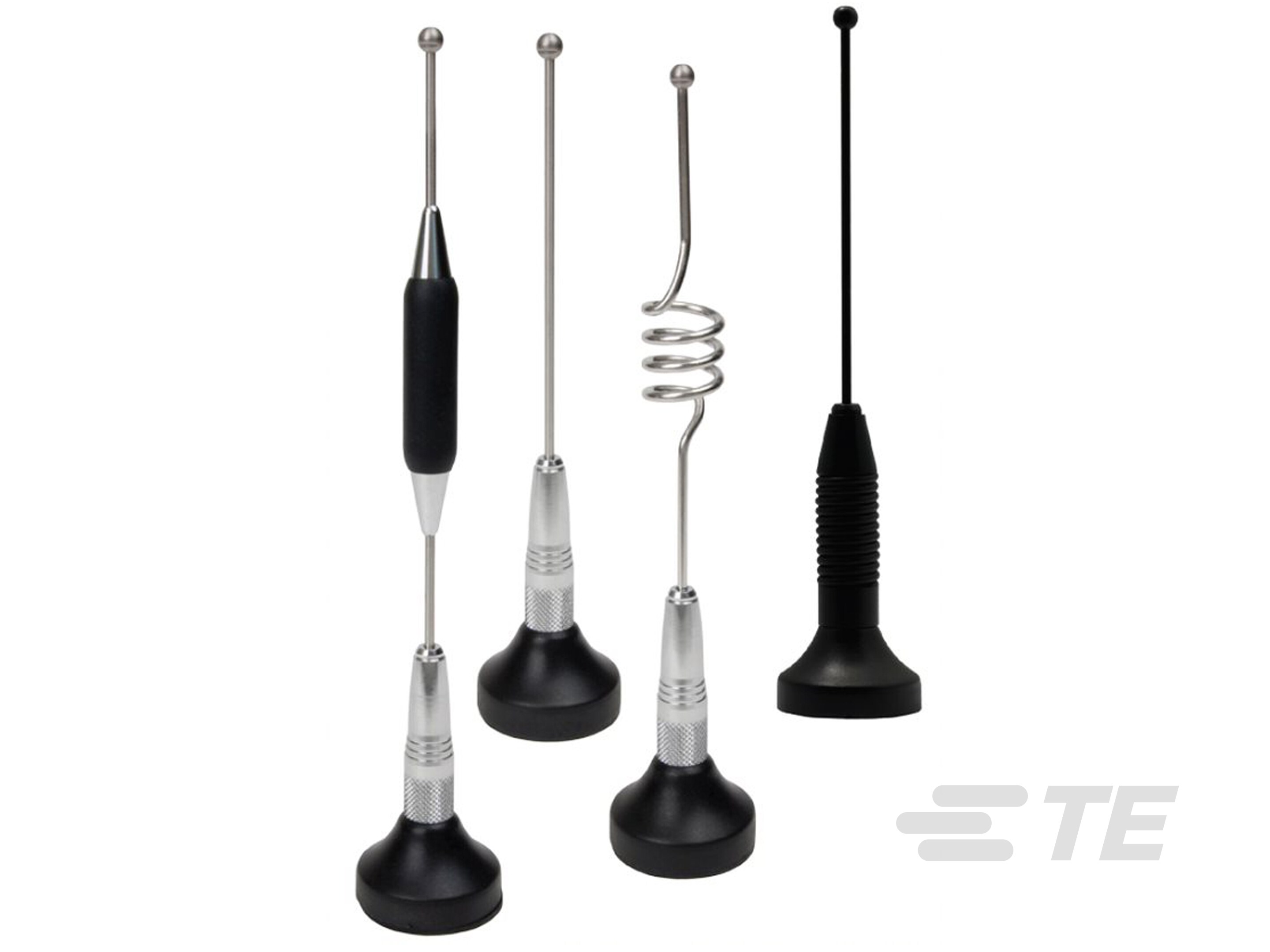

WHIP,AB,OC,896-970MHZ 933,3,CH,GP,
A8963-L
ActiveTE Connectivity AMP Connectors
WHIP,AB,OC,896-970MHZ 933,3,CH,GP,
Description
General part information
A8963-L
Whip Antenna, Single Band, Cellular / ISM / Vehicular, External Mount, Stud/Screw/Lug Mount, NMO, Omnidirectional, Single Port, 0 < 3 dBi Peak Gain
Technical Specifications
Parameters and characteristics for this part
| Specification | A8963-L |
|---|---|
| Antenna Type | Straight, Whip |
| Frequency (Center/Band) | 933 MHz |
| Frequency Group | UHF |
| Frequency Group Maximum (UHF) | 1 GHz |
| Frequency Group Minimum (UHF) | 300 MHz |
| Frequency Range (Max) | 970 MHz |
| Frequency Range (Min) | 896 MHz |
| Gain | 3 dBi |
| Mounting Type | Base Mount |
| Number of Bands | 1 |
| Power - Max | 200 W |
| Termination | NMO |
| VSWR | 1.5 |
