1776302-3
UnknownTE Connectivity AMP Connectors
TSB100003DS=EUROPA TM BLK,12MM
1776302-3
UnknownTE Connectivity AMP Connectors
TSB100003DS=EUROPA TM BLK,12MM
Description
General part information
1776302-3

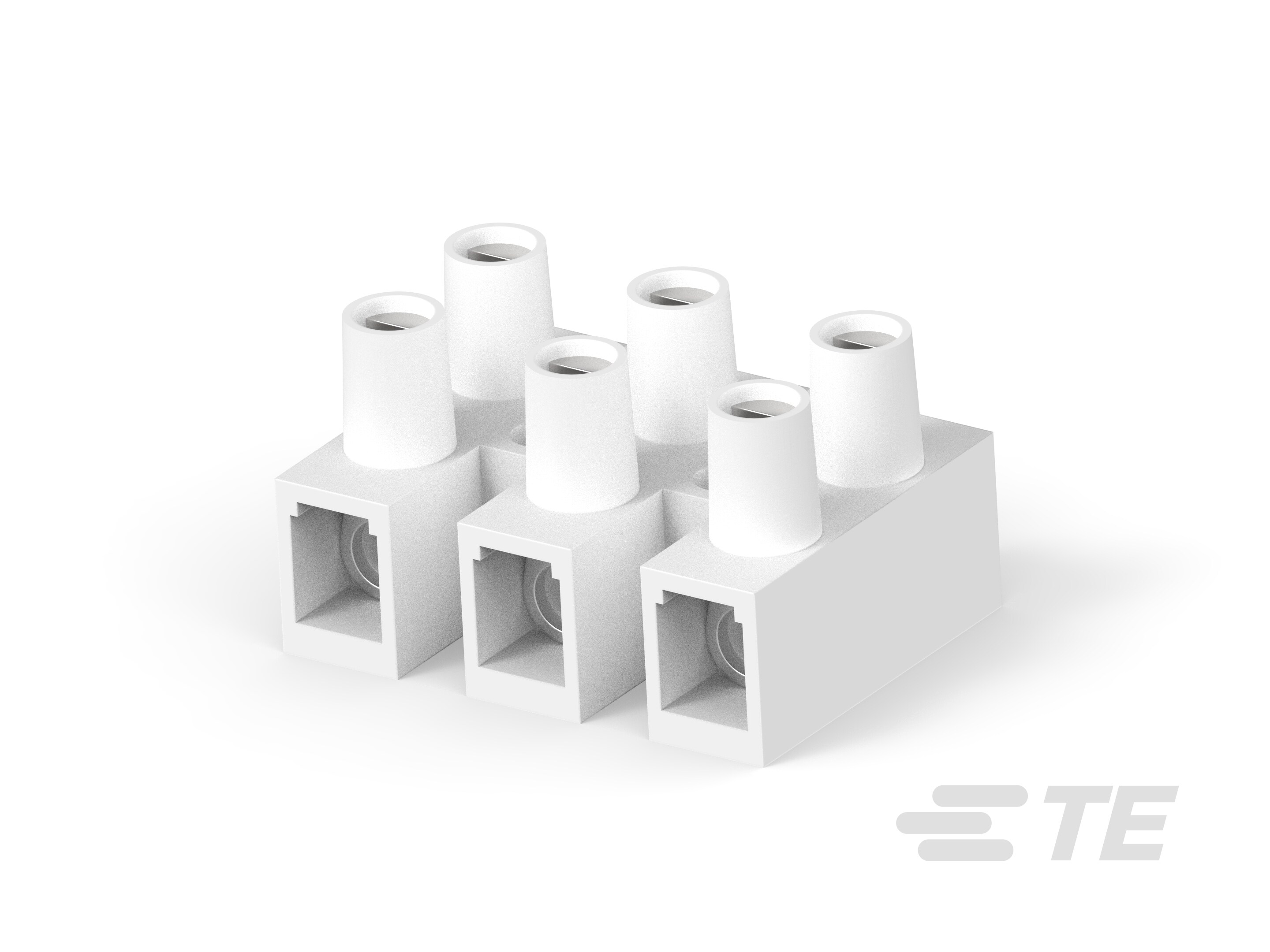

3 Position Barrier Strip, Wire-to-Wire, 12 mm [.472 in] Centerline, 1 Row, 250 V, 22 – 10 AWG, .3 – 6 mm² Wire, Wire & Cable, Panel Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | 1776302-3 |
|---|---|
| Barrier Type | Enclosed |
| Bottom Termination | Closed |
| Color | Natural |
| Current Rating | 40 A |
| Number of Circuits | 3 |
| Number of Rows | 2 |
| Number of Wire Entries | 6 |
| Pitch | 0.472 in |
| Terminal Block Type | Eurostyle Terminal Strip |
| Top Termination | Screws |
| Voltage Rating | 250 V |
| Wire Gauge (AWG) (Max) | 22 AWG |
| Wire Gauge (AWG) (Min) | 10 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
