LCCN3097
ActivePasternack
1.0/2.3 MALE STRAIGHT FOR BELDEN
LCCN3097
ActivePasternack
1.0/2.3 MALE STRAIGHT FOR BELDEN
Description
General part information
LCCN3097

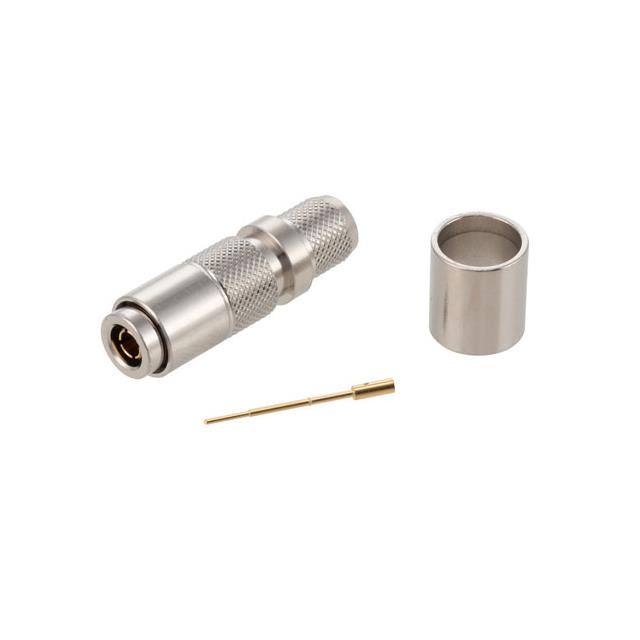

1.0/2.3 Connector Plug, Male Pin 75 Ohms Free Hanging (In-Line) Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | LCCN3097 |
|---|---|
| Body Finish | Nickel |
| Body Material | Brass |
| Cable Group | Belden 1694A, 4694R, RG-6 |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Connector Style | 1.0/2.3 |
| Connector Type | Male Pin, Plug |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Snap-On |
| Frequency - Max | 12 Gbps |
| Housing Color | Silver |
| Impedance | 75 Ohm |
| Mounting Type | Free Hanging (In-Line) |
| Number of Ports | 1 |
| Shield Termination | Crimp |
