HSB20-353525
ActiveSame Sky (Formerly CUI Devices)

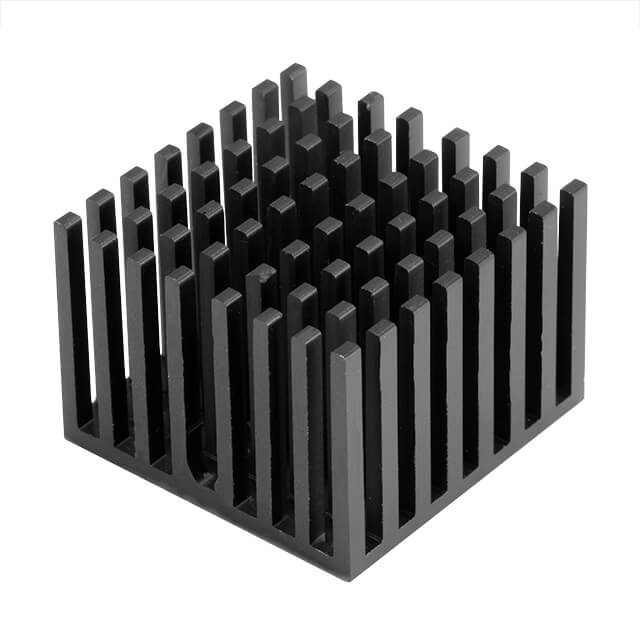

HEAT SINK, BGA, 35 X 35 X 25 MM
HSB20-353525
ActiveSame Sky (Formerly CUI Devices)
HEAT SINK, BGA, 35 X 35 X 25 MM
Description
General part information
HSB20-353525
Heat Sink BGA Aluminum Alloy 11.3W @ 75°C Top Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | HSB20-353525 |
|---|---|
| Attachment Method | Adhesive (Not Included) |
| Fin Height | 0.984 in |
| Length | 1.378 in |
| Material | Aluminum Alloy |
| Material Finish | Black Anodized |
| Package Cooled | BGA |
| Power Dissipation | 11.3 W |
| Shape | Square, Pin Fins |
| Thermal Resistance | 6.65 °C/W, 2.7 °C/W |
| Type | Top Mount |
| Width | 1.378 in |
