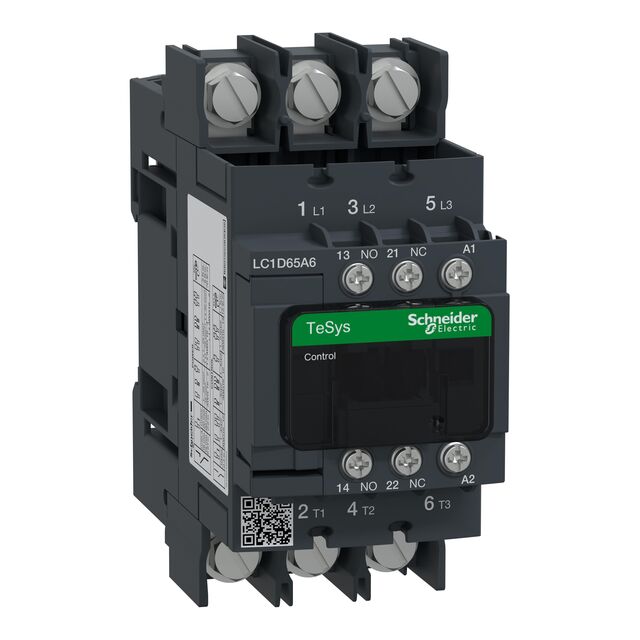

LC1D65A6R7
ActiveSCHNEIDER ELECTRIC
TESYS 3P EVLK CTR 65A30KW AC3 44
LC1D65A6R7
ActiveSCHNEIDER ELECTRIC
TESYS 3P EVLK CTR 65A30KW AC3 44
Description
General part information
LC1D65A6R7
TESYS 3P EVLK CTR 65A30KW AC3 44
Technical Specifications
Parameters and characteristics for this part
| Specification | LC1D65A6R7 |
|---|---|
| Coil Voltage | 440 VAC |
| Contact Form | A, PST-NO, Form, 3 |
| Contact Rating (Current) | 65 A |
| Features | Auxiliary Contacts |
| Mounting Type | Chassis Mount, DIN Rail |
| Must Operate Voltage | 374 VAC |
| Must Release Voltage | 132 VAC |
| Operate Time | 26 ms |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -40 °C |
| Pin Count | 3 pins |
| Release Time | 19 ms |
| Switching Voltage AC (Max) | 690 VAC |
| Switching Voltage DC (Max) | 300 VDC |
| Termination Style | Box Lug |
