20VLP10-R
ActiveCERAMIC SUPPRESSION CAPACITOR, DISC, 0.1 ΜF, ± 20%, X2, 400 V, RADIAL LEADED
20VLP10-R
ActiveCERAMIC SUPPRESSION CAPACITOR, DISC, 0.1 ΜF, ± 20%, X2, 400 V, RADIAL LEADED
Description
General part information
20VLP10-R

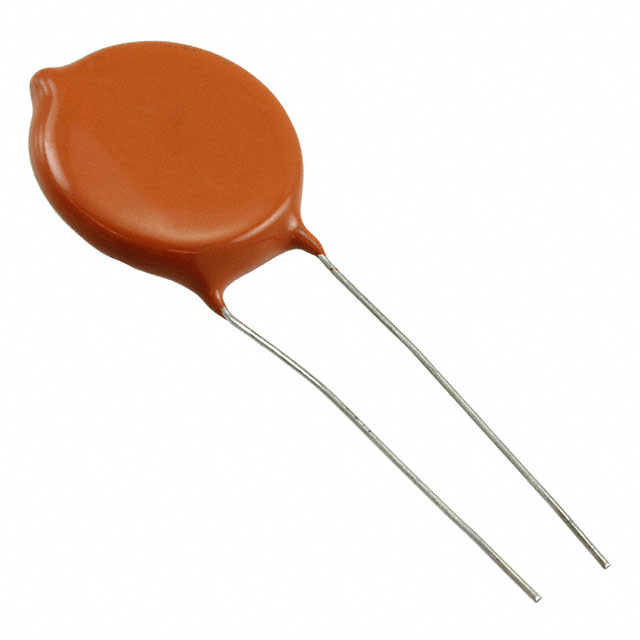

The 20VLP10-R is a radial leaded AC line rated Ceramic Disc Capacitor for RFI filtering and across-the-line applications. The 20VL series capacitor consist of a ceramic disc of which both sides are silver plating. Connection leads are made of tinned copper having a diameter of 0.025-inch. The capacitors may be supplied with radial kinked having a lead spacing of 0.375-inch. The standard tolerance is ±20%. Coating is made of flame-retardant epoxy resin in accordance with UL94V-0. Ceramic is a commonly used dielectric material that can improve capacitor power dissipation.
Technical Specifications
Parameters and characteristics for this part
| Specification | 20VLP10-R |
|---|---|
| Applications | Safety |
| Capacitance | 0.1 µF |
| Height - Seated (Max) | 1.128 in |
| Lead Spacing | 0.374 in |
| Lead Style | Straight |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -30 °C |
| Package / Case | Disc, Radial |
| Ratings | X2 |
| Size / Dimension Diameter | 0.941 in |
| Temperature Coefficient | Y5V (F) |
| Tolerance | 20 % |
| Voltage - Rated | 400 V |
