Description
General part information

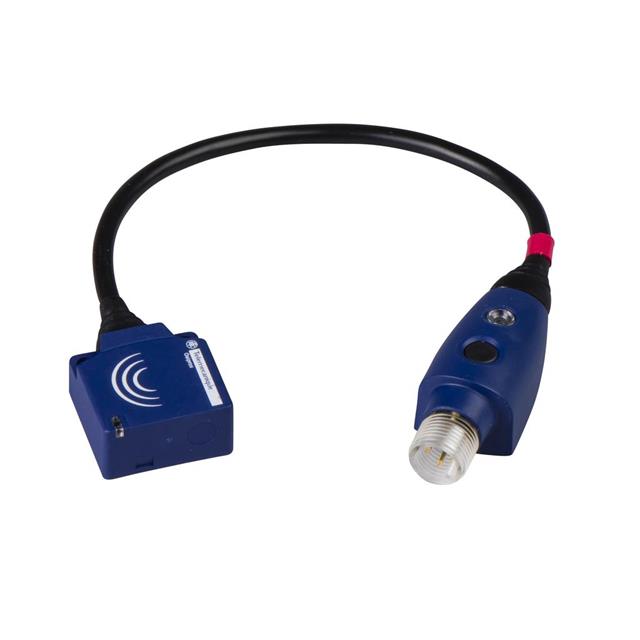

XS9E111A2L01M12
Inductive Proximity Sensor 0.394" (10mm) IP67 Module
Technical Specifications
Parameters and characteristics for this part
| Specification | XS9E111A2L01M12 |
|---|---|
| Indicator | No Indicator |
| Ingress Protection | IP67 |
| Material - Body | Polybutylene Terephthalate (PBT) |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -25 °C |
| Output Type | Analog Current |
| Package / Case | Module |
| Sensing Distance | 0.394 " |
| Sensor Type | Inductive |
| Shielding | Unshielded |
| Termination Style | Cable with Connector |
| Voltage - Supply | 24 VDC |
