3-2445748-1
ActiveTE Connectivity AMP Connectors

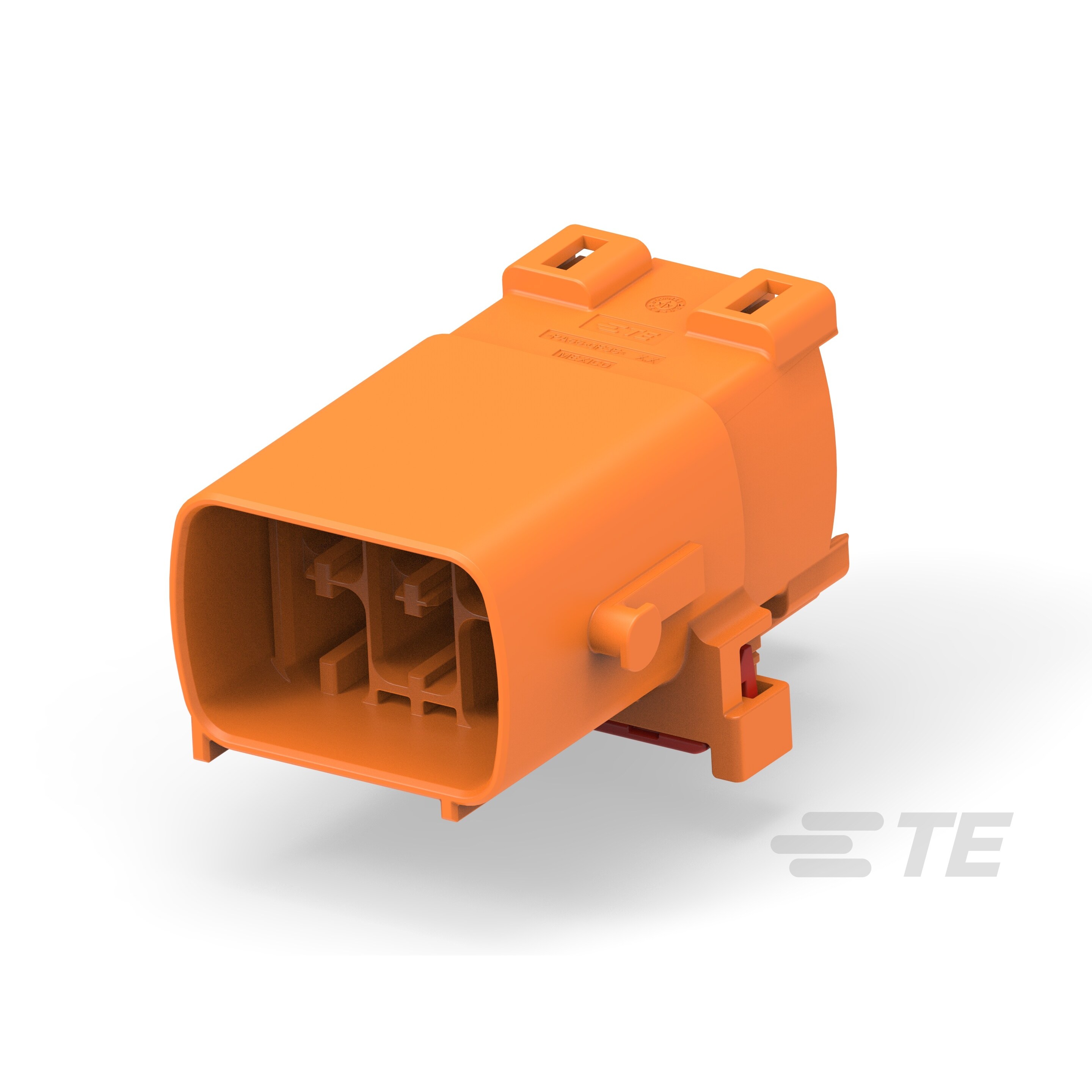

5POS,HVA630,TAB OUTER HSG ASSY,COD A
3-2445748-1
ActiveTE Connectivity AMP Connectors
5POS,HVA630,TAB OUTER HSG ASSY,COD A
Description
General part information
3-2445748-1
7 Position Housing, Cap, Wire-to-Wire, 10.4 mm [.409 in] Centerline, Sealable, Orange, Wire & Cable, Power & Signal, Cable Mount (Free-Hanging)
Technical Specifications
Parameters and characteristics for this part
| Specification | 3-2445748-1 |
|---|---|
| Color | Orange |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Tab |
| Fastening Type | Push-Pull |
| Insulation Material | Nylon 6/6, Polyamide (PA66), Glass Filled |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 7 |
| Number of Rows | 2 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch | 0.409 in |
| Row Spacing | 0.409 in |
