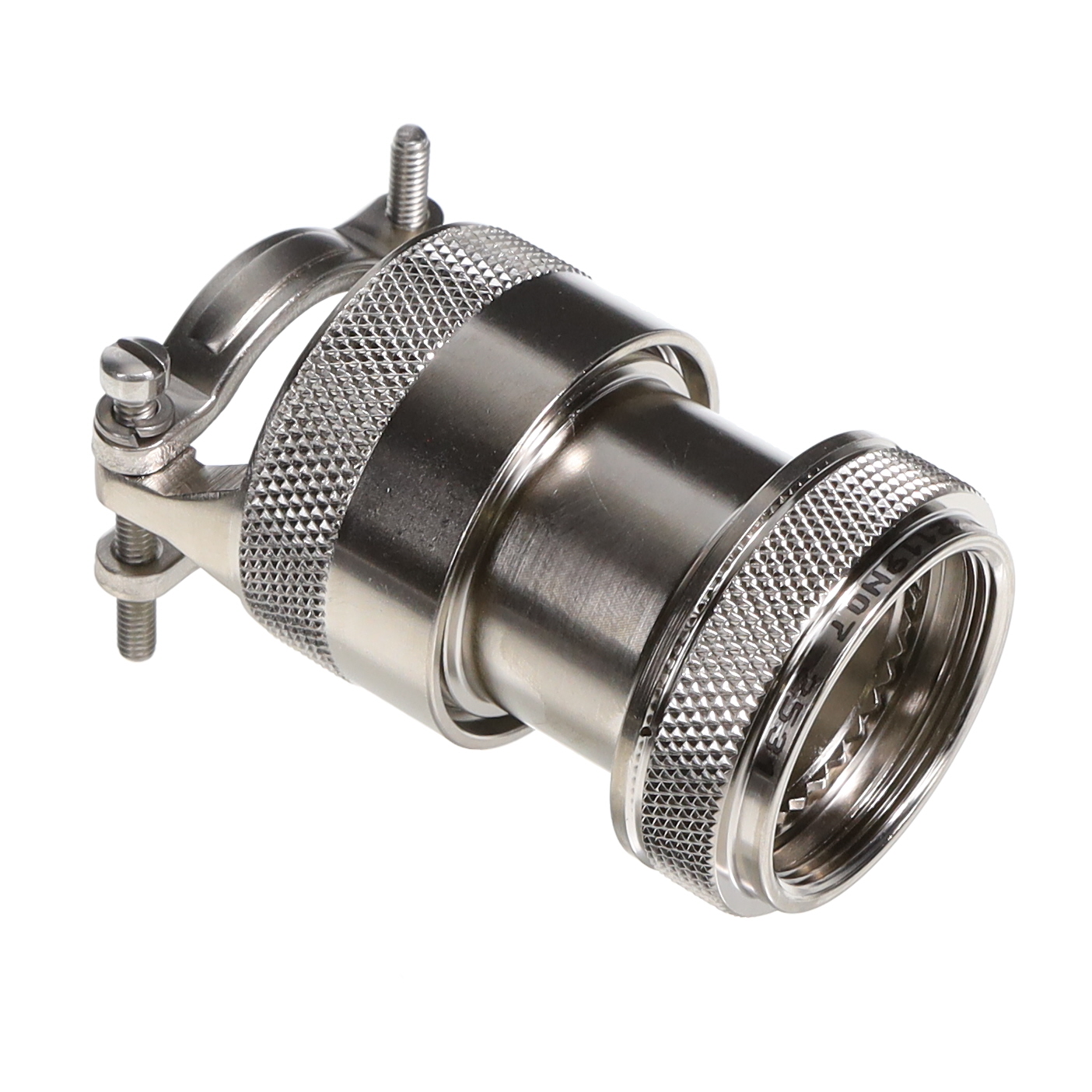

A850492119N07
ActiveMcGill Microwave Systems
BACKSHELL;NON ENV;ENP
A850492119N07
ActiveMcGill Microwave Systems
BACKSHELL;NON ENV;ENP
Description
General part information
A850492119N07
BACKSHELL;NON ENV;ENP
Technical Specifications
Parameters and characteristics for this part
| Specification | A850492119N07 |
|---|---|
| Cable Exit Angle | 180 ° |
| Cable Opening (Max) | 0.88 in |
| Cable Opening (Min) | 0.69 in |
| Color | Silver |
| Diameter - Outside | 1.4 in |
| Features | Clamp Screws |
| Ingress Protection | Environment Resistant |
| Material | Aluminum Alloy |
| Plating | Electroless Nickel |
| Primary Material | Metal |
| Shell Size - Insert | F, 19 |
| Shielding | Unshielded |
| Type | Cable Clamp, Backshell |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
