MAL205651103E3
ActiveVishay Dale
CAPACITOR,10MF,50VDC,20-% TOL,20+% TOL
MAL205651103E3
ActiveVishay Dale
CAPACITOR,10MF,50VDC,20-% TOL,20+% TOL
Description
General part information
MAL205651103E3

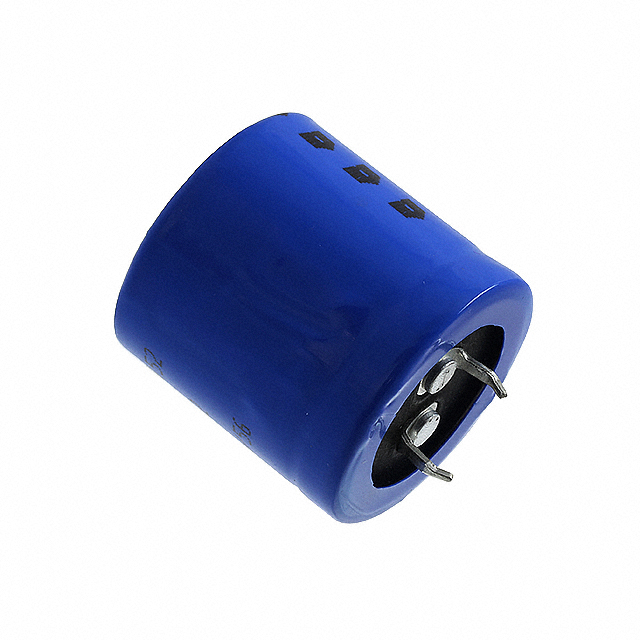

10000 µF 50 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 49mOhm @ 100Hz 12000 Hrs @ 85°C
Technical Specifications
Parameters and characteristics for this part
| Specification | MAL205651103E3 |
|---|---|
| Applications | Audio |
| Capacitance | 10000 µF |
| ESR (Equivalent Series Resistance) | 49 mOhm |
| Height - Seated (Max) | 1.654 in |
| Impedance | 42 mOhm |
| Lead Spacing | 0.394 in |
| Lifetime | 12000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Can - Snap-In, Radial |
| Polarization | Polar |
| Ripple Current | 4.05 A |
| Size / Dimension Diameter | 1.378 in |
| Tolerance | 20 % |
| Voltage - Rated | 50 V |
