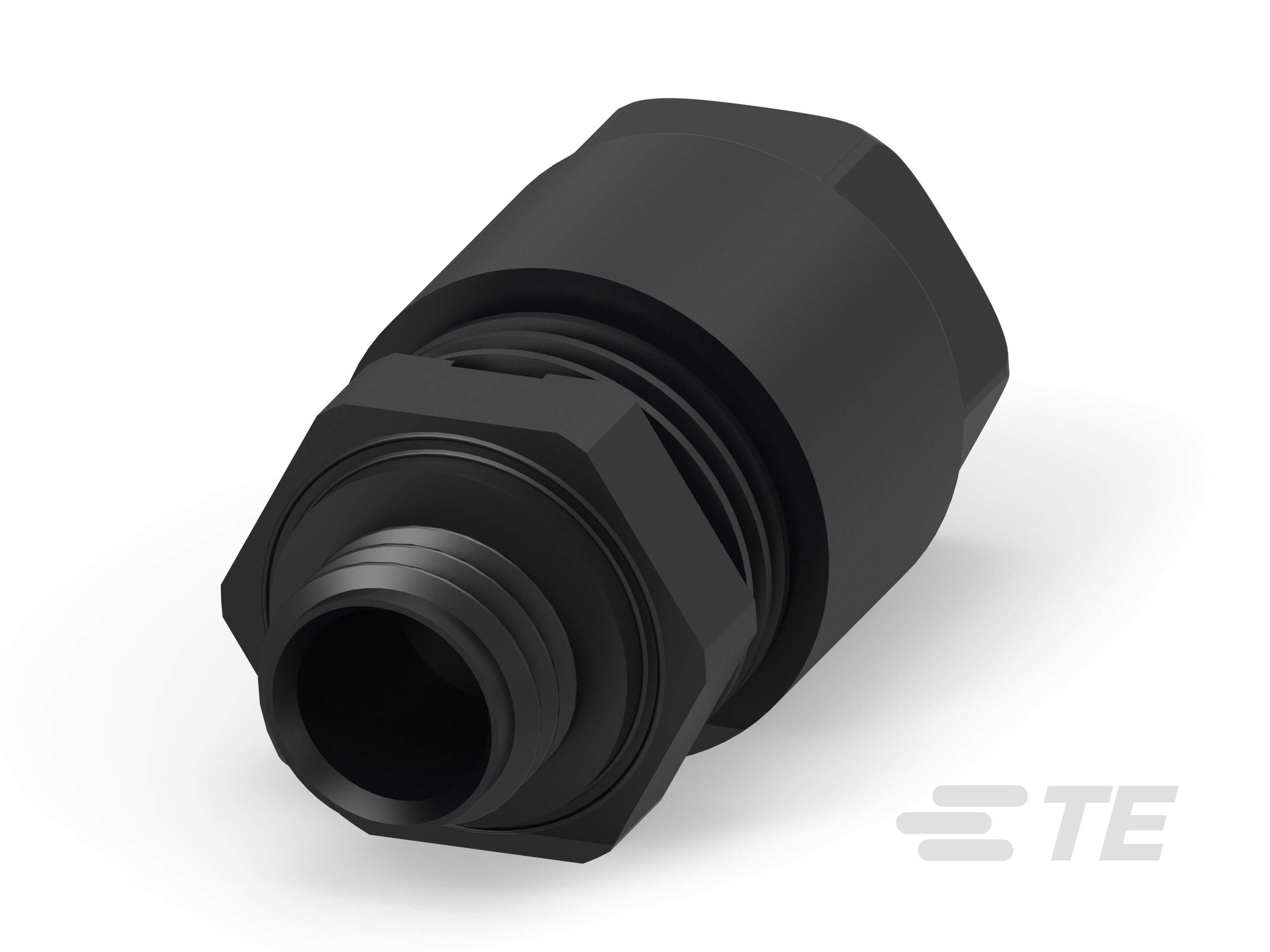

VENT CG,PA6,M12,4-8,8,BLK-2490541-3

2490541-3

Active
TE Connectivity AMP Connectors

VENT CG,PA6,M12,4-8,8,BLK

Find alt
VENT CG,PA6,M12,4-8,8,BLK-2490541-3

2490541-3

Active
TE Connectivity AMP Connectors

VENT CG,PA6,M12,4-8,8,BLK

Find alt

Description

General part information

2490541-3

Ventilated Cable Gland, PA 6, 4 – 8 mm Clamping Range, Black, IP69

Technical Specifications

Parameters and characteristics for this part

Specification2490541-3
ColorBlack
Ingress Protection DescriptionWater Resistant, Dust Tight, Waterproof
Ingress Protection IP RatingIP66, IP69, IP68
MaterialPolyamide (PA6), Nylon 6
Operating Temperature (Max)100 °C
Operating Temperature (Min)-40 °C
Outside Cable Diameter (Max)0.315 in
Outside Cable Diameter (Min)0.157 in
Thread Diameter12 mm
Thread Length0.315 in
Thread Pitch1.5 mm
TypeCable Gland
