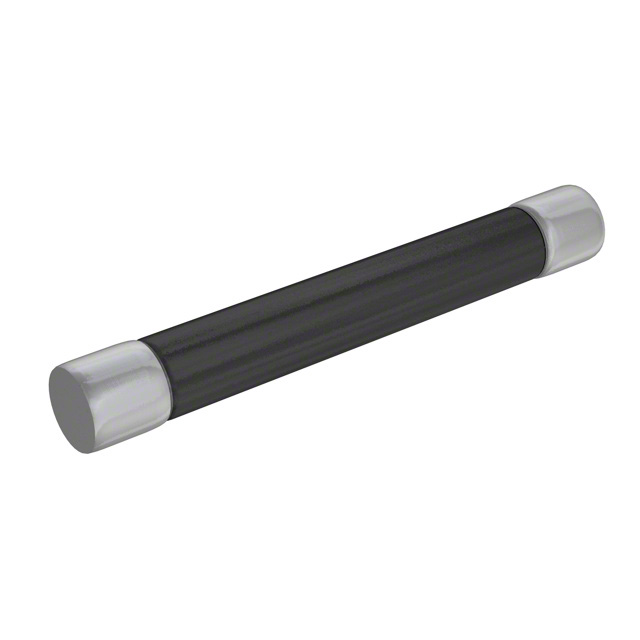

HVA-6
ActiveEaton - Electronics Division
FUSE, INDUSTRIAL / POWER, HV SERIES, 6 A, 1000 VAC, 10.3MM X 76.1MM, 0.41" X 3"
HVA-6
ActiveEaton - Electronics Division
FUSE, INDUSTRIAL / POWER, HV SERIES, 6 A, 1000 VAC, 10.3MM X 76.1MM, 0.41" X 3"
Description
General part information
HVA-6
6A 1 kVAC Fuse Cartridge Requires Holder
Technical Specifications
Parameters and characteristics for this part
| Specification | HVA-6 |
|---|---|
| Applications | Electrical, Industrial |
| Current Rating | 6 A |
| Fuse Type | Cartridge |
| Mounting Type | Requires Holder |
| Package / Case | Cartridge, Non-Standard |
| Response Time | Fast Blow |
| Size / Dimension Diameter | 0.41 in |
| Size / Dimension Length | 2.996 in |
| Voltage Rating - AC | 1 kVAC |
