HDP-20,RCPT,SIZE 5, 50 POSN-1658640-1

1658640-1

Active
TE Connectivity AMP Connectors

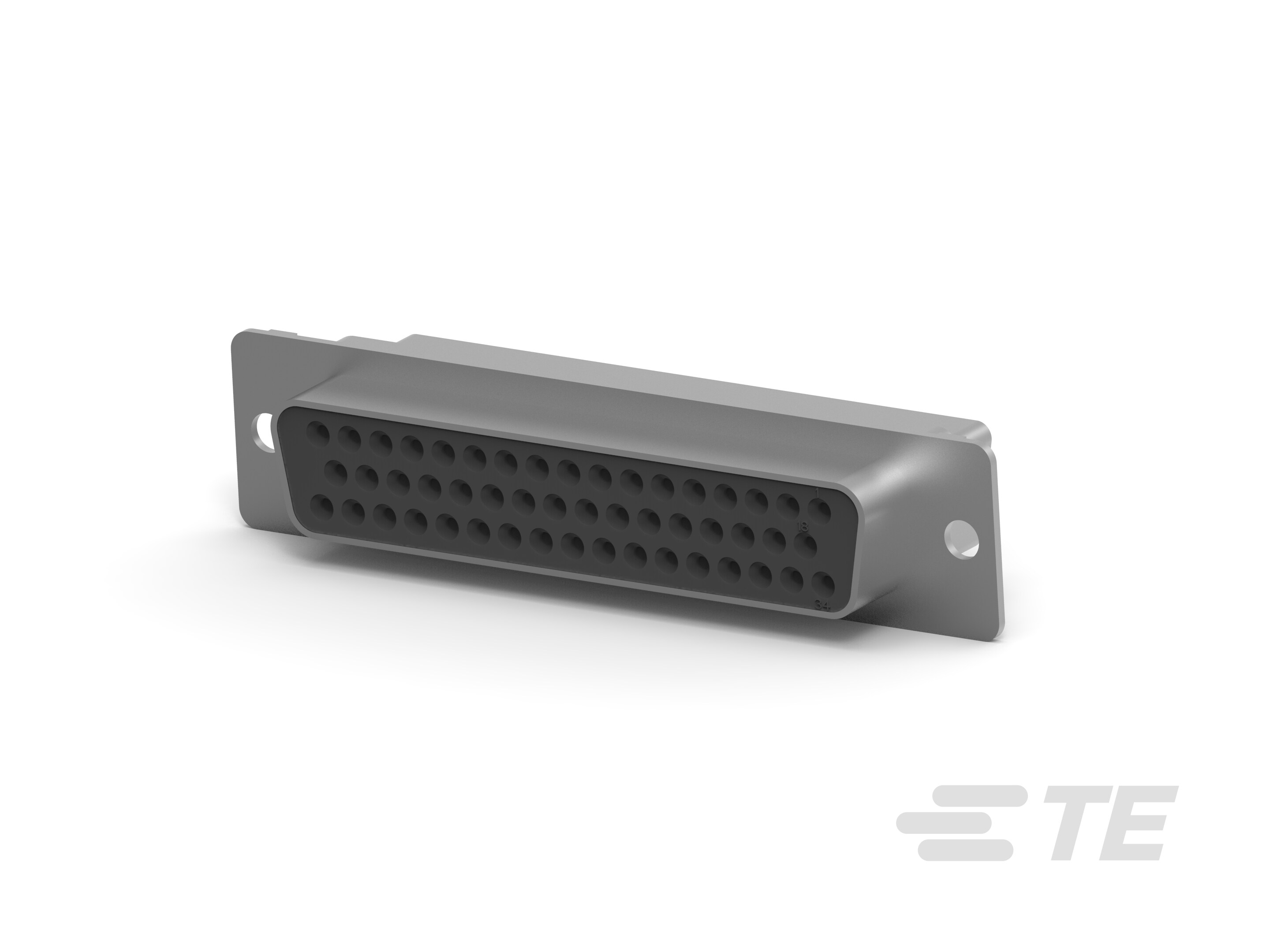

D SUB CONNECTOR HOUSING, 50 POSITIONS, D SUB, DD, AMPLIMITE HDP-20 SERIES, RECEPTACLE, STEEL BODY

Find alt
HDP-20,RCPT,SIZE 5, 50 POSN-1658640-1

1658640-1

Active
TE Connectivity AMP Connectors

D SUB CONNECTOR HOUSING, 50 POSITIONS, D SUB, DD, AMPLIMITE HDP-20 SERIES, RECEPTACLE, STEEL BODY

Find alt

Description

General part information

1658640-1

The 1658640-1 is a 50-position snap-in crimp D-sub Connector with steel body. The shell is made of tin-plated steel and has 5 shell size. The Amplimite HDP-20 series connector has machine applied terminations assure highest production rates. Intermateable with any size 20 Subminiature D connector dimensionally complying with MIL-C-24308. Crimp snap-in contacts allows loading of only the number of contacts being used.

Technical Specifications

Parameters and characteristics for this part

Specification1658640-1
Connector LayoutD, DD
Connector StyleD-Sub
Connector TypeReceptacle for Female Contacts
Contact TypeSignal
FinishTin Plated
Flange FeatureShell (Unthreaded), Housing
Mounting TypeFree Hanging (In-Line)
Number of Positions50
Number of Rows3
Shell Finish Thickness200 µin
Shell MaterialSteel
Shell Size5
