1-292253-0

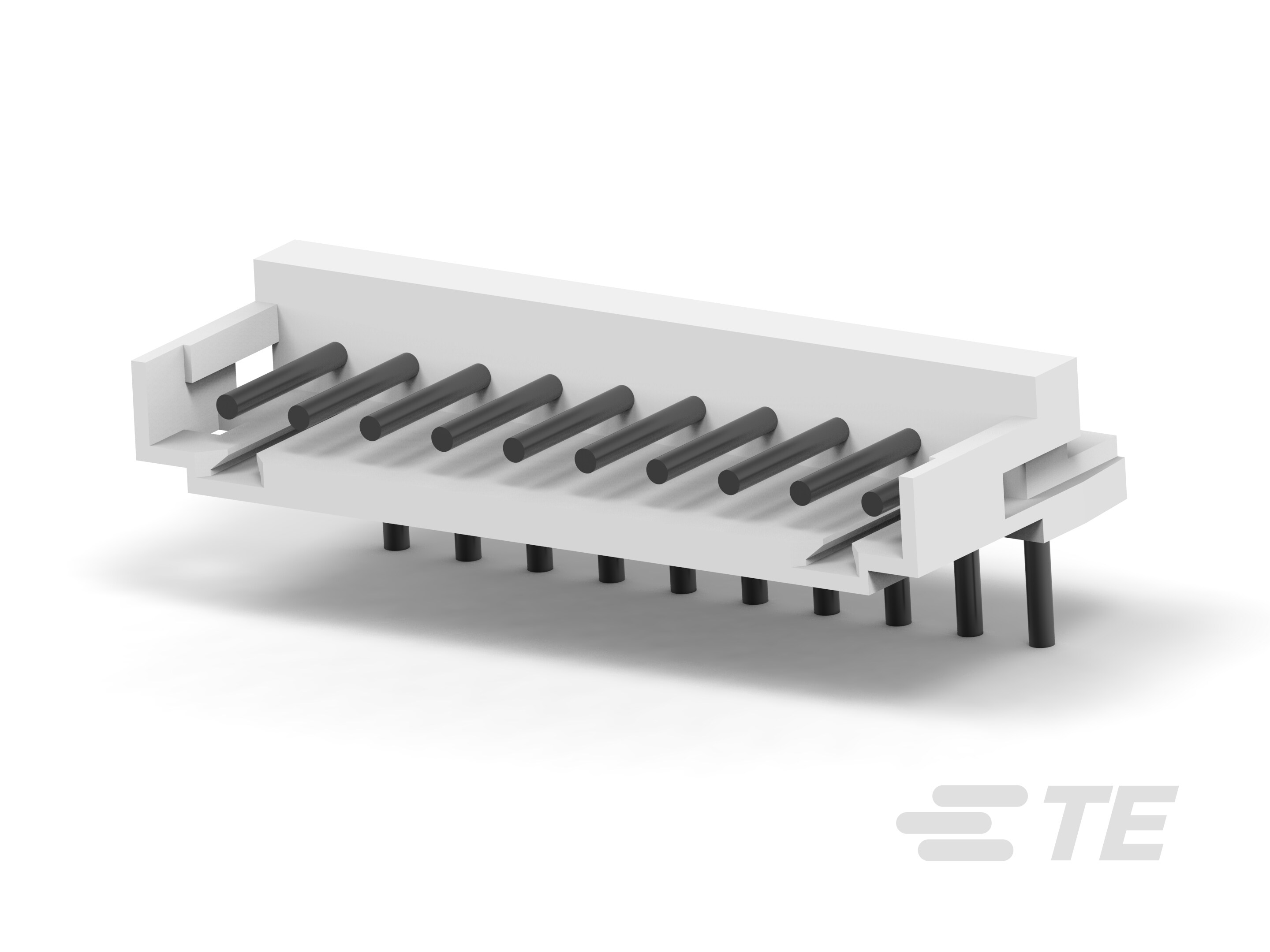

PCB Mount Header, Right Angle, Wire-to-Board, 10 Position, 2 mm [.079 in] Centerline, Partially Shrouded, Tin (Sn), Through Hole - Solder, AMP CT
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-292253-0 |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Tin |
| Contact Finish - Post | Tin |
| Contact Length - Mating | 0.177 in |
| Contact Length - Post | 0.126 in |
| Contact Material | Brass |
| Contact Shape | Circular |
| Contact Type | Male Pin |
| Current Rating | 0 A |
| Current Rating | Varies by Wire Gauge |
| Fastening Type | Detent Lock |
| Insulation Color | Natural |
| Insulation Height | 0.157 in |
| Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 10 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Pitch - Mating | 0.079 in |
| Shrouding | Shrouded - 3 Wall |
| Style | Cable/Wire, Board |
| Termination | Kinked Pin, Solder |
| Voltage Rating | 125 V |
