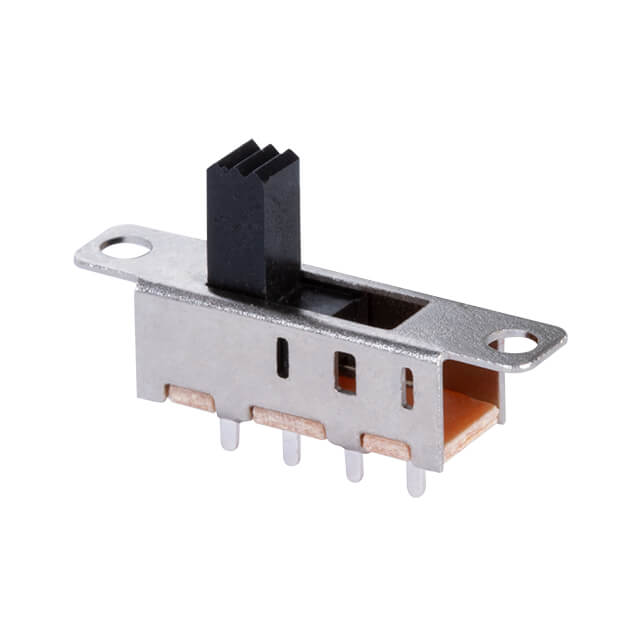

SLW-237661-6A-N-D
ActiveSame Sky (Formerly CUI Devices)
SWITCH: SLIDE; POS: 3; SP3T; 0.5A/50VDC; THT; -20÷70°C; PITCH: 3.2MM
SLW-237661-6A-N-D
ActiveSame Sky (Formerly CUI Devices)
SWITCH: SLIDE; POS: 3; SP3T; 0.5A/50VDC; THT; -20÷70°C; PITCH: 3.2MM
Description
General part information
SLW-237661-6A-N-D
Slide Switch SP3T Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | SLW-237661-6A-N-D |
|---|---|
| Actuator Length | 6 mm |
| Actuator Material | Nylon 6/6, Polyamide (PA66) |
| Actuator Type | Standard |
| Circuit | SP3T |
| Contact Finish | Silver |
| Contact Material | Phosphor Copper |
| Contact Timing | Non-Shorting (BBM) |
| Current Rating | 0.5 A |
| Electrical Life (Cycles) | 10000 Cycles |
| Mechanical Life (Cycles) | 10000 Cycles |
| Mounting Type | Through Hole |
| Operating Force | 0.25 kgf |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -20 °C |
| Switch Function | On-On-On |
| Switch Travel | 3.2 mm |
| Termination Style | PC Pin |
| Voltage Rating - DC | 50 V |
