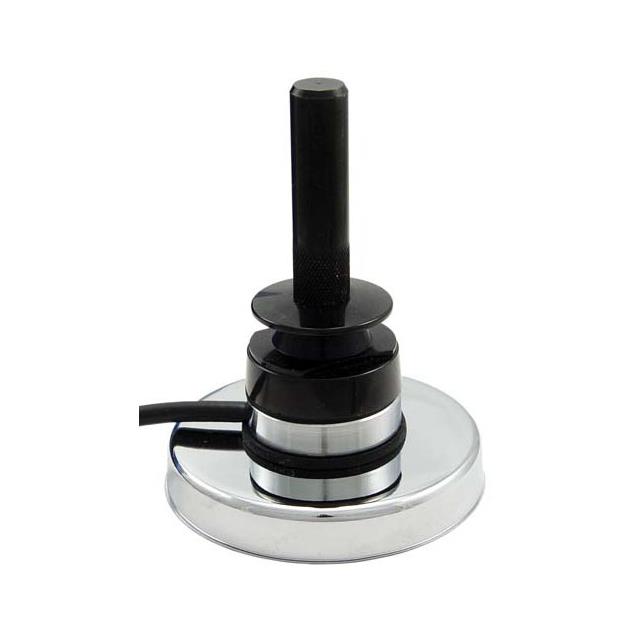

HG2403MGU-SM
ActivePasternack
ANTMAGMNT 2.4GHZ/900MHZ 3DBI
HG2403MGU-SM
ActivePasternack
ANTMAGMNT 2.4GHZ/900MHZ 3DBI
Description
General part information
HG2403MGU-SM
RF ANTENNA 802.11b/g, Bluetooth, GSM, ISM, Wi-Fi, WLAN Whip, Straight N Type Female, N Type Male Magnetic
Technical Specifications
Parameters and characteristics for this part
| Specification | HG2403MGU-SM |
|---|---|
| Antenna Type | Straight, Whip |
| Applications | 802.11b/g, Wi-Fi, GSM, WLAN, ISM, Bluetooth |
| Cable Length | 3.05 m |
| Features | 3.05m, Cable |
| Frequency (Band) | 2.45 GHz |
| Frequency (Center) | 930 MHz |
| Frequency Group | UHF |
| Frequency Group Maximum (UHF) | 3 GHz, 1 GHz |
| Frequency Group Minimum (UHF) | 2 GHz, 300 MHz |
| Frequency Range (Band 1) Maximum | 960 MHz |
| Frequency Range (Band 1) Minimum | 900 MHz |
| Frequency Range (Band 2) Maximum | 2.5 GHz |
| Frequency Range (Band 2) Minimum | 2.4 GHz |
| Gain | 3 dBi |
| Height (Max) | 10 in |
| Mounting Type | Magnetic |
| Number of Bands | 2 |
| Power - Max | 50 VA |
| RF Family/Standard | General ISM, WiFi, Cellular, Bluetooth |
| Termination | N Type Male, N Type Female |
| VSWR | 1.5 |
