B59885C0120A070
ActiveEPCOS - TDK Electronics
PTC RESET FUSE 550V 15MA RADIAL
B59885C0120A070
ActiveEPCOS - TDK Electronics
PTC RESET FUSE 550V 15MA RADIAL
Description
General part information
B59885C0120A070

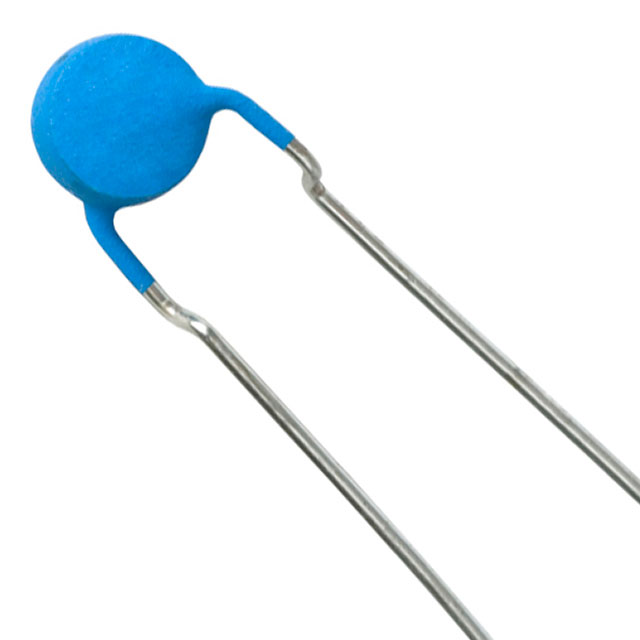

Ceramic PTC Resettable Fuse 550V 15 mA Ih Through Hole Radial, Disc
Technical Specifications
Parameters and characteristics for this part
| Specification | B59885C0120A070 |
|---|---|
| Approval Agency | UR |
| Current - Hold (Ih) (Max) | 15 mA |
| Current - Max | 100 mA |
| Current - Trip (It) | 30 mA |
| Height - Seated (Max) | 0.394 in |
| Lead Spacing | 0.197 in |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | 0 °C |
| Package / Case | Disc, Radial |
| Resistance - 25°C (Typ) | 1.2 kOhms |
| Size / Dimension Diameter | 0.256 in |
| Size / Dimension Thickness | 0.197 in |
| Type | Ceramic |
| Voltage - Max | 550 V |
