Description
General part information

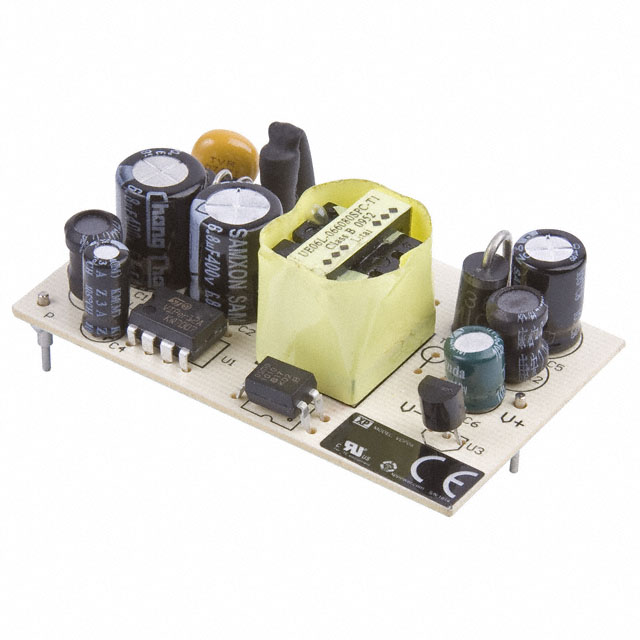

VCP05US05
Open Frame AC DC Converters 1 Output 5V 1A 90 ~ 264 VAC Input
Technical Specifications
Parameters and characteristics for this part
| Specification | VCP05US05 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | cUL, EN, IEC |
| Current - Output (Max) | 1 A |
| Efficiency | 69 % |
| Features | Universal Input |
| Line Regulation | 0.5 % |
| Load Regulation (Percent) | 2 % |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | 0 °C |
| Package / Case | 5-DIP Module |
| Power (Watts) | 5 W |
| Size / Dimension Height | 0.91 in |
| Size / Dimension Length | 2.3 in |
| Size / Dimension Width | 1.4 in |
| Standard Number | 62368-1 |
| Type | Open Frame |
| Voltage - Input (AC) Maximum | 264 V |
| Voltage - Input (AC) Minimum | 90 V |
| Voltage - Output 1 | 5 V |
| Weight | 0.044 lb |
