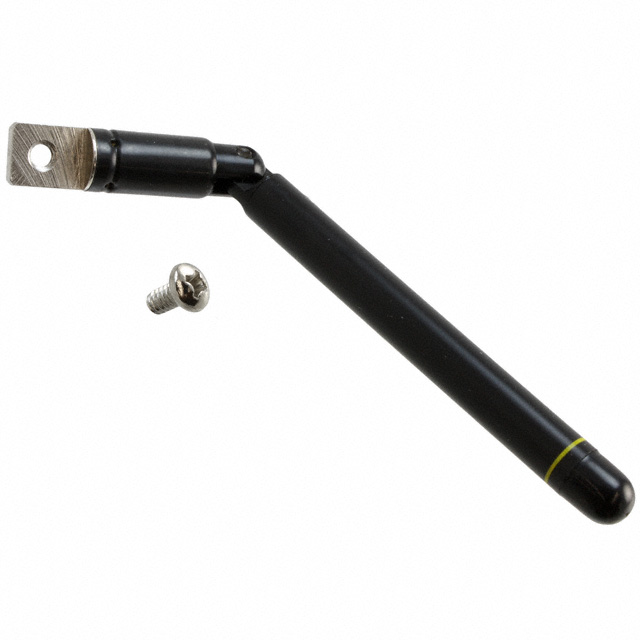

Specification	ANT-916-PW-RA

Antenna Type	Tilt, Whip
Applications	Sensor Networks, LoRa, Sigfox, ISM
Frequency (Center/Band)	915 MHz
Frequency Group	UHF
Frequency Group Maximum (UHF)	1 GHz
Frequency Group Minimum (UHF)	300 MHz
Frequency Range (Max)	1.095 GHz
Frequency Range (Min)	816 MHz
Gain	0 dBi
Height (Max)	3.898 in
Mounting Type	Panel Mount
Number of Bands	1
RF Family/Standard	General ISM
Termination	Screw-Mount
VSWR	1.9

ANT-916 Series

Part	Applications	VSWR	Frequency Group Maximum (UHF)	Frequency Group	Frequency Group Minimum (UHF)	Mounting Type	Number of Bands	Height (Max)	Termination	RF Family/Standard	Frequency (Center/Band)	Antenna Type	Frequency Range (Max)	Frequency Range (Min)	Gain	Features	Termination Type	Ingress Protection
TE Connectivity AMP Connectors ANT-916-USP-T	ISM LoRa Sensor Networks Sigfox	2	1 GHz	UHF	300 MHz	Surface Mount	1	0.1 in	Solder	General ISM	915 MHz	Chip	928 MHz	904 MHz	0.3 dBi
TE Connectivity AMP Connectors ANT-916-JJB-HT-T	ISM LoRa Sensor Networks Sigfox	2	1 GHz	UHF	300 MHz	Through Hole	1	0.48 in	Solder	General ISM	915 MHz	Straight Whip	928 MHz	902 MHz	-12.3 dBi
TE Connectivity AMP Connectors ANT-916-MHW-SMA-S	ISM LoRa Sensor Networks Sigfox	1.9	1 GHz	UHF	300 MHz	Adhesive	1	5.433 in		General ISM	915 MHz	Center-Fed Double Whip	1.016 GHz	816 MHz	5.4 dBi	2m Cable	SMA Male
TE Connectivity AMP Connectors ANT-916-MHW-SMA-L	ISM LoRa Sensor Networks Sigfox	1.9	1 GHz	UHF	300 MHz	Adhesive	1	5.433 in		General ISM	916 MHz	Center-Fed Double Whip	1.016 GHz	816 MHz	5.4 dBi	4.6m Cable	SMA Male
TE Connectivity AMP Connectors ANT-916-HESM	ISM LoRa Sensor Networks Sigfox	2	1 GHz	UHF	300 MHz	Surface Mount	1	0.35 in	Solder	General ISM	915 MHz	Helical	965 MHz	865 MHz	2.4 dBi
TE Connectivity AMP Connectors ANT-916-PW-QW-UFL	ISM LoRa Sensor Networks Sigfox	1.9	1 GHz	UHF	300 MHz	Panel Mount	1	3.15 in	IPEX MHF1 U.FL (UMCC)	General ISM	915 MHz	Straight Whip	965 MHz	865 MHz	1.8 dBi	216mm Cable	I-PEX MHF1 U.FL
TE Connectivity AMP Connectors ANT-916-ID-2000-SMA	ISM LoRa Sensor Networks Sigfox	1.9	1 GHz	UHF	300 MHz	Bracket Mount	1	4.906 in		General ISM	915 MHz	Straight Whip	945 MHz	895 MHz	1.6 dBi	2m Cable	SMA Male	IP67
TE Connectivity AMP Connectors ANT-916-USP	ISM LoRa Sensor Networks Sigfox	1.9	1 GHz	UHF	300 MHz	Surface Mount	1	0.1 in	Solder	General ISM	915 MHz	Chip	928 MHz	904 MHz	0.3 dBi
TE Connectivity AMP Connectors ANT-916-CW-RAH-SMA		1.9	1 GHz	UHF	300 MHz	Connector Mount	1	1.829 in	SMA		916 MHz	Right Angle Whip	970 MHz	850 MHz	2.2 dBi
TE Connectivity AMP Connectors ANT-916-PW-LP	ISM LoRa Sensor Networks Sigfox	1.9	1 GHz	UHF	300 MHz	Panel Mount	1	1.988 in	Screw-Mount	General ISM	915 MHz	Straight Whip	951 MHz	881 MHz	2.4 dBi
