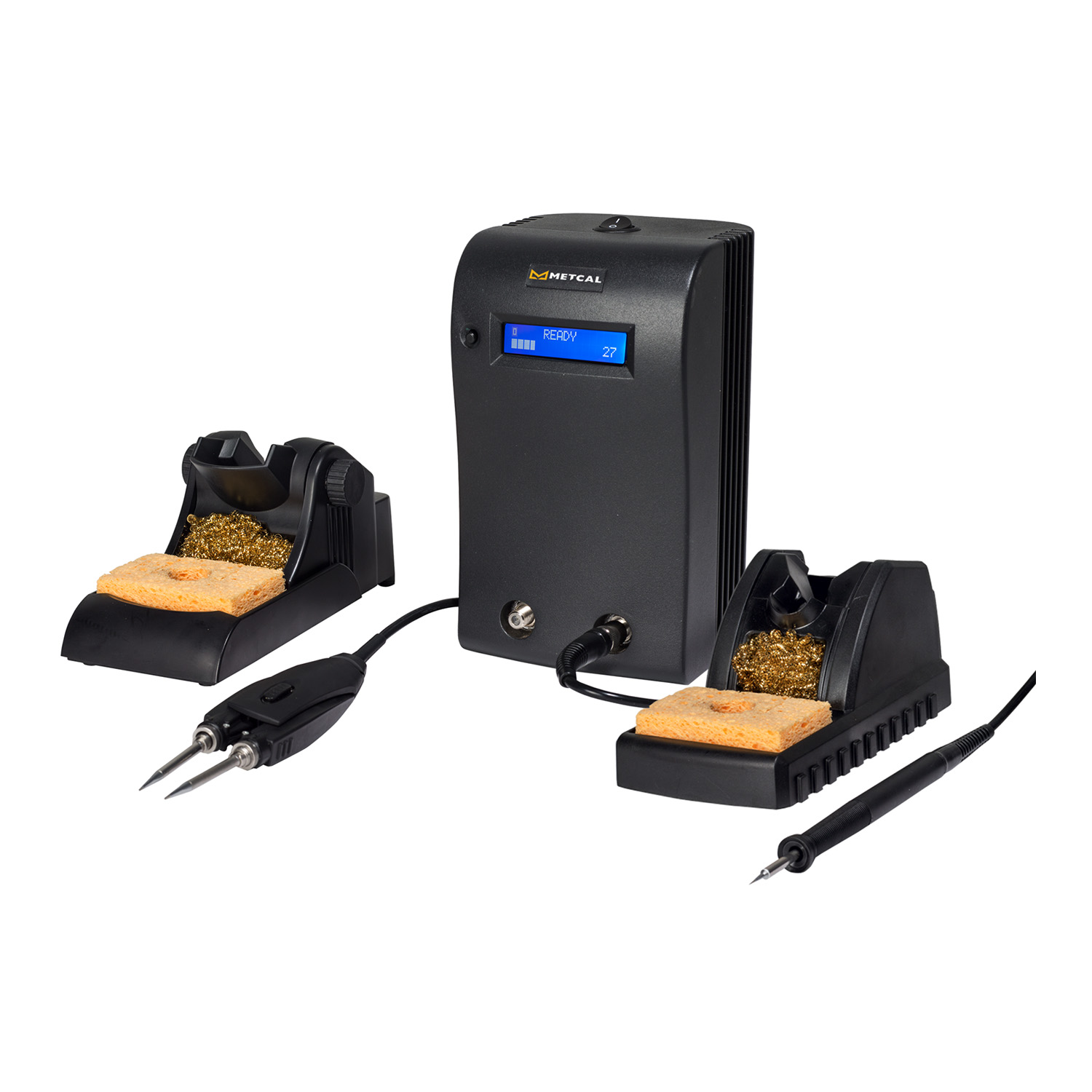

MX-500SPT
The MX-500SPT is a Soldering and Rework System utilizes SmartHeat® Technology, wherein each cartridge is equipped with a self-regulating heater which 'senses' its own temperature and closely maintains its pre-set idle temperature for the life of the heater-tip. The tip temperature is determined by the inherent metallurgical properties of the heater; no external adjustment or equipment is required. It retains switchable dual port, 40W operation while introducing numerous new features in a new housing.
Technical Specifications
Parameters and characteristics for this part
| Specification | MX-500SPT |
|---|---|
| Control/Display Type | Digital |
| Features | ESD Safe |
| Number of Channels | 1 |
| Plug Type | Included, Not Specified |
| Temperature Range (Max) | 104 °F |
| Temperature Range (Min) | 50 °F |
| Tip Cleaner | Sponge |
| Type | Soldering, Rework |
| Voltage - Input | 220 VDC |
| Voltage - Output | 24 V |
| Wattage | 700 W, 70 W |
| Workstand | Not Specified, Included |
