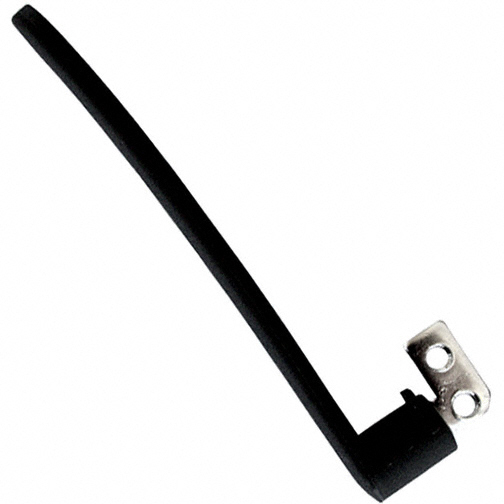

ANT-916-PMB
ObsoleteTE Connectivity AMP Connectors
RF ANT 916MHZ WHIP RA SCREW-MT
ANT-916-PMB
ObsoleteTE Connectivity AMP Connectors
RF ANT 916MHZ WHIP RA SCREW-MT
Description
General part information
ANT-916-PMB
916MHz Whip, Right Angle RF Antenna 902MHz ~ 928MHz Screw-Mount Panel Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | ANT-916-PMB |
|---|---|
| Antenna Type | Right Angle, Whip |
| Frequency (Center/Band) | 916 MHz |
| Frequency Group | UHF |
| Frequency Group Maximum (UHF) | 1 GHz |
| Frequency Group Minimum (UHF) | 300 MHz |
| Frequency Range (Max) | 928 MHz |
| Frequency Range (Min) | 902 MHz |
| Height (Max) | 3.543 in |
| Mounting Type | Panel Mount |
| Number of Bands | 1 |
| Termination | Screw-Mount |
| VSWR | 2 |
