HSB04-171706
ActiveSame Sky (Formerly CUI Devices)

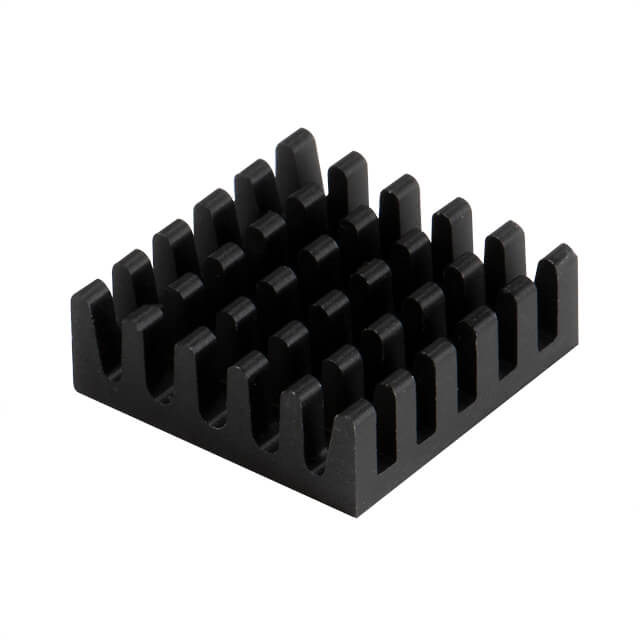

HEAT SINK, BGA, 17 X 17 X 6 MM
HSB04-171706
ActiveSame Sky (Formerly CUI Devices)
HEAT SINK, BGA, 17 X 17 X 6 MM
Description
General part information
HSB04-171706
Heat Sink BGA Aluminum Alloy 2.5W @ 75°C Top Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | HSB04-171706 |
|---|---|
| Attachment Method | Adhesive (Not Included) |
| Fin Height | 0.236 in |
| Length | 0.669 in |
| Material | Aluminum Alloy |
| Material Finish | Black Anodized |
| Package Cooled | BGA |
| Power Dissipation | 2.5 W |
| Shape | Square, Pin Fins |
| Thermal Resistance | 13.1 °C/W, 29.73 °C/W |
| Type | Top Mount |
| Width | 0.669 in |
