SMJ-RJ4590
ActivePasternack
RJ45 SURFACE MOUNT JACK 90, 30UM
SMJ-RJ4590
ActivePasternack
RJ45 SURFACE MOUNT JACK 90, 30UM
Description
General part information
SMJ-RJ4590

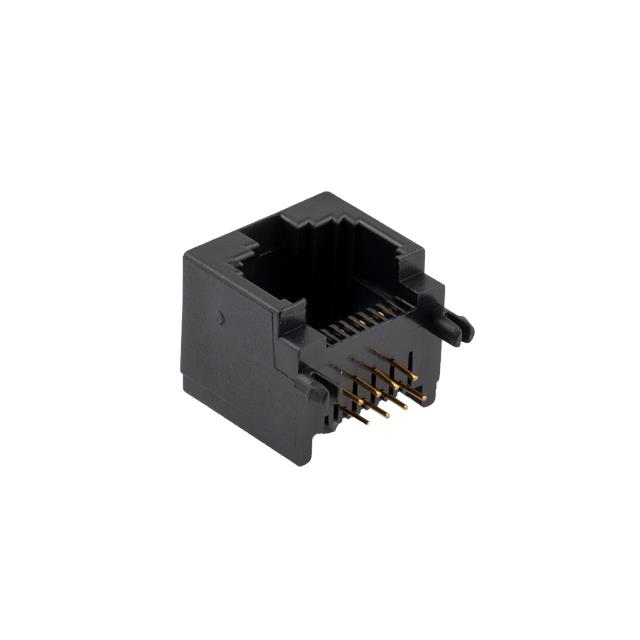

Jack Modular Connector 8p8c (RJ45, Ethernet) 90° Angle (Right) Shielded Cat6
Technical Specifications
Parameters and characteristics for this part
| Specification | SMJ-RJ4590 |
|---|---|
| Connector Type | Ethernet, RJ45, Jack |
| Contact Finish | Gold |
| Contact Finish Thickness | 30 µin |
| Contact Material | Phosphor Bronze |
| Housing Material | Glass Filled, Polybutylene Terephthalate, PBT |
| LED Color | Does Not Contain LED |
| Mounting Type | Through Hole |
| Number of Contacts | 8 |
| Number of Ports | 1 |
| Number of Positions | 8 |
| Number of Rows | 1 |
| Orientation Angle | 90 ° |
| Orientation Direction | Right |
| Ratings | Cat6 |
| Shielding | Shielded |
| Tab Direction | Up |
| Termination | Solder |
