AS0722N0GTR
ActiveKYOCERA AVX

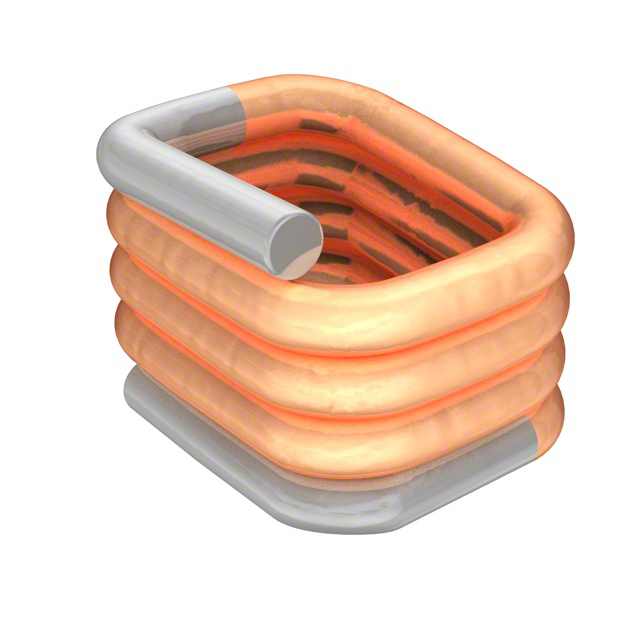

AIR CORE INDUCTORS
AS0722N0GTR
ActiveKYOCERA AVX
AIR CORE INDUCTORS
Description
General part information
AS0722N0GTR
22 nH Unshielded Wirewound Inductor 2.7 A 10mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | AS0722N0GTR |
|---|---|
| Current Rating | 2.7 A |
| DC Resistance (DCR) (Max) | 10 mOhm |
| Frequency - Self Resonant | 3.5 GHz |
| Height - Seated (Max) | 0.07 in |
| Inductance | 22 nH |
| Inductance Frequency - Test | 400 MHz |
| Material - Core | Air |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Q | 100 |
| Shielding | Unshielded |
| Size / Dimension Length | 0.102 in |
| Size / Dimension Width | 0.072 in |
| Tolerance | 2 % |
| Type | Wirewound |
