1-2271656-1
ActiveTE Connectivity AMP Connectors

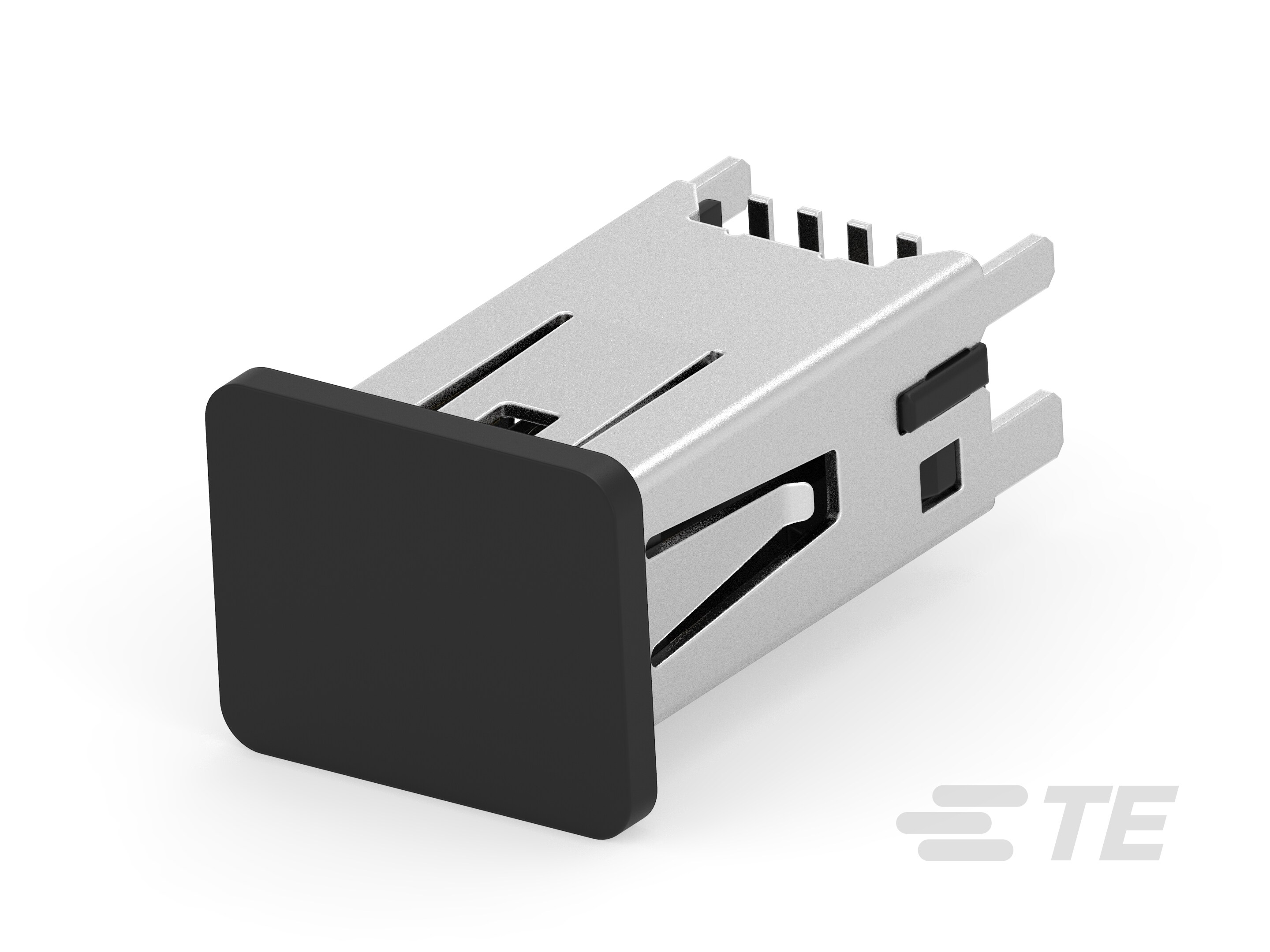

MINI IO VERTICAL SMT PLUS REC CONN KIT
1-2271656-1
ActiveTE Connectivity AMP Connectors
MINI IO VERTICAL SMT PLUS REC CONN KIT
Description
General part information
1-2271656-1
Industrial Mini I/O, Jack, Shielded, Cat 5e, Cable-to-Board, Vertical, Top Entry, LCP, Printed Circuit Board, Nickel, Industrial Mini I/O Connectors
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-2271656-1 |
|---|---|
| Connector Style | Receptacle |
| Connector Type | Multi-Purpose |
| Contact Finish | Gold |
| Contact Finish Thickness | 19.7 µin |
| Features | Cover, Board Guide |
| Mounting Type | Surface Mount |
| Number of Positions | 8 |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
